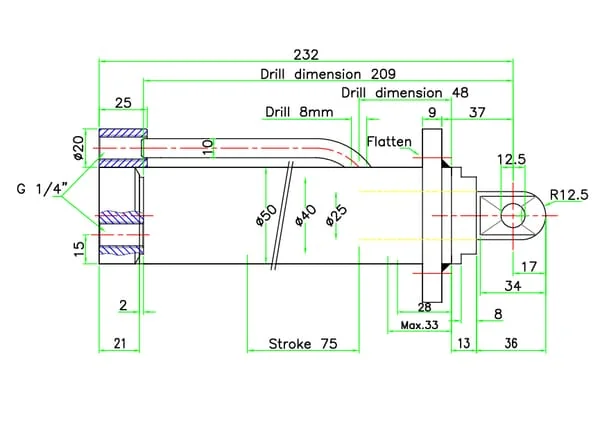

Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet
Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet
Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet
Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet
Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet
Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet

Kramp - D254075CW1 - Quick-Change Cylinder CW10 Pladdet

€88.93

(Excl. VAT)

Price

(Excl. VAT)

€88.93

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
Type
Double acting
Unit
Each
Stroke
75 mm
Min. length
195 mm
Rod diameter
25 mm
Rod material
Steel 20MnV6 Steel C45
Inside diameter
40 mm
Long description
Cylinder Quick release, type CW
Outside diameter
50 mm
Cylinder material
Stainless steel 52.0
Head nut material
Steel

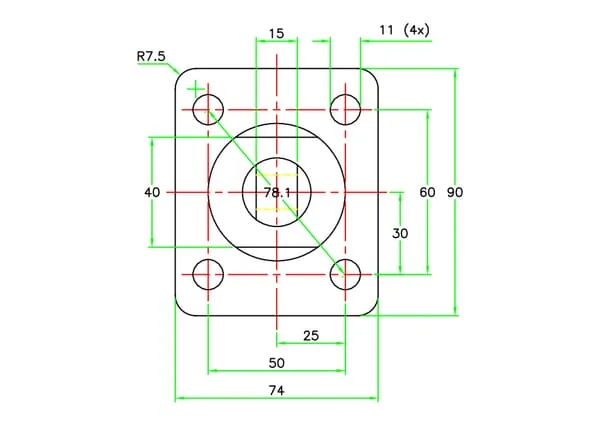

Mounting head width
74 mm
Application category
Quick release
Mounting head length
90 mm
Max. working pressure
250 BAR
Rod surface roughness
0,25 µm
Rod surface treatment
Chromated
Mounting type - rod connection
Bore
Cylinder end to rod end distance
249 mm
Mounting type - cylinder connection
Flange
Cylinder material tolerance class code
H10
Mounting hole diameter - rod connection
12,5 mm
Mounting diameter (width) - rod connection
11 mm
Mounting hole diameter - cylinder connection
11 mm
Mounting holes distance - cylinder connection
50 mm60 mm
Mounting thread diameter - cylinder connection
1/4 Inch
Mounting diameter (width) - cylinder connection
12,5 mm
Manufacturer
Kramp
