Kramp - D3050580 - Kramp Self-build cyl. 30-50-580 - D3050580, 5700038822425

OEM Quality

SKU: kramp-d3050580

Kramp - D3050580 - Kramp Self-build cyl. 30-50-580 - D3050580, 5700038822425

€95.55€81.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€95.55

Brand
Kramp
Part Numbers
D3050580; 5700038822425
Pros
Cylinder can be adjusted to any required length. Simple assembly
Unit
Each
AStroke
580 mm
Includes

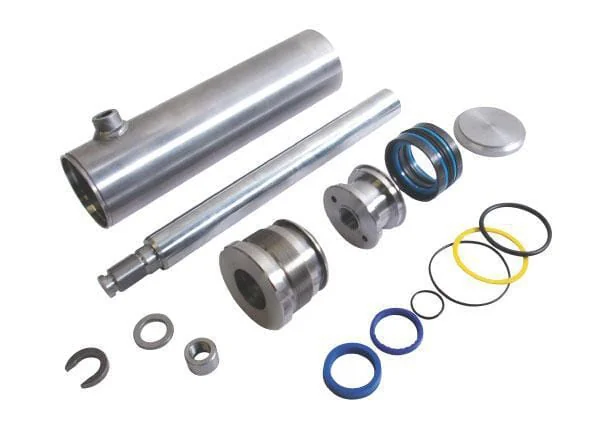

Complete self-assembly kit Assembly instructions Without fastenings
BMin. length
736 mm
Rod diameter
30 mm
Rod material
Steel 20MnV6
Inside diameter
50 mm
Product details
Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Nominal pressure
200 BAR
Cylinder material
Stainless steel 52.0
EOutside diameter
60 mm
Head nut material
Cast iron
Max. piston speed
0,1 m/s
Guide ring material
Plastic
Application category
Do it yourself
Max. working pressure
250 BAR
Rod surface roughness
0,2 µm
Rod surface treatment
Chromated
Oil connection material
Steel
Max. working temperature
85 °C
Min. working temperature
-25 °C
Mounting type - rod connection
No mounting
Oil connection inside diameter
19 mm
FCylinder end to rod end distance
47 mm
Mounting type - cylinder connection
No mounting
Cylinder material tolerance class code
H10
CMounting thread diameter - cylinder connection
3/8 Inch
HOil connection centre to cylinder end distance - rod side
53 mm
EAN
5700038822425
Manufacturer
Kramp

Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
