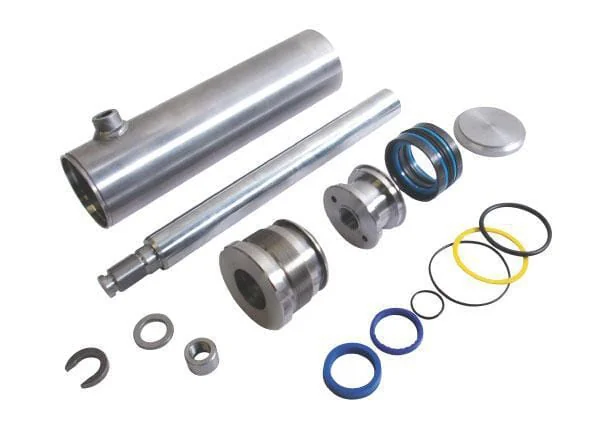

Kramp - D3570800 - Kramp Self-build cyl. 35-70-800 - D3570800, 5700038823316

OEM Quality

SKU: kramp-d3570800

Kramp - D3570800 - Kramp Self-build cyl. 35-70-800 - D3570800, 5700038823316

€140.52€120.10 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€140.52

Brand
Kramp
Part Numbers
D3570800; 5700038823316
Pros
Cylinder can be adjusted to any required length. Simple assembly
Unit
Each
AStroke
800 mm
Includes
Complete self-assembly kit Assembly instructions Without fastenings
BMin. length
976 mm
Rod diameter
35 mm
Rod material
Steel 20MnV6
Inside diameter
70 mm
Product details
Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Nominal pressure
200 BAR
Cylinder material
Stainless steel 52.0
EOutside diameter
80 mm
Head nut material
Cast iron
Max. piston speed
0,1 m/s
Guide ring material
Plastic
Application category
Do it yourself
Max. working pressure
250 BAR
Rod surface roughness
0,2 µm
Rod surface treatment
Chromated
Oil connection material
Steel
Max. working temperature
85 °C
Min. working temperature
-25 °C
Mounting type - rod connection
No mounting
Oil connection inside diameter
21 mm
FCylinder end to rod end distance
53 mm
Mounting type - cylinder connection
No mounting
Cylinder material tolerance class code
H10
CMounting thread diameter - cylinder connection
3/8 Inch
HOil connection centre to cylinder end distance - rod side
60 mm
EAN
5700038823316
Manufacturer
Kramp

Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,384 genuine Kramp spare parts.
