Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5
Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5
Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5
Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5
Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5
Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5

Kramp - D4070130CW5 - Kramp Cylinder Quick-Change CW5

€192.16

(Excl. VAT)

Price

(Excl. VAT)

€192.16

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,605 genuine Kramp spare parts.

Product Details

Brand
Kramp
Type
Double acting
Unit
Each
Stroke
130 mm
Min. length
327 mm
Rod diameter
40 mm
Rod material
Steel 20MnV6 Steel C45
Inside diameter
70 mm
Long description
Cylinder Quick release, type CW
Outside diameter
85 mm
Cylinder material
Stainless steel 52.0
Head nut material
Steel

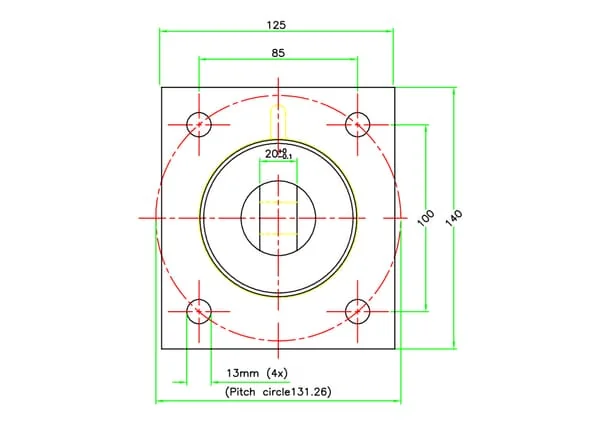

Mounting head width
125 mm
Application category
Quick release
Mounting head length
140 mm
Max. working pressure
250 BAR
Rod surface roughness
0,25 µm
Rod surface treatment
Chromated
Mounting type - rod connection
Bore
Cylinder end to rod end distance
377 mm
Mounting type - cylinder connection
Flange
Cylinder material tolerance class code
H10
Mounting hole diameter - rod connection
17 mm
Mounting diameter (width) - rod connection
17 mm
Mounting hole diameter - cylinder connection
13 mm
Mounting holes distance - cylinder connection
85 mm100 mm
Mounting thread diameter - cylinder connection
1/4 Inch
Mounting diameter (width) - cylinder connection
13 mm
Manufacturer
Kramp
