Kramp-dklo132200 - Hydraulic hose DN12 2200mm
Kramp-dklo132200 - Hydraulic hose DN12 2200mm

Last known price:

€47.39

Get an up-to-date price and availability

Request a Quote

Pay Securely with

Kramp-dklo132200 - Hydraulic hose DN12 2200mm

Kramp-dklo132200 - Hydraulic hose DN12 2200mm

Last known price:

€47.39

Request a Quote

Product Description

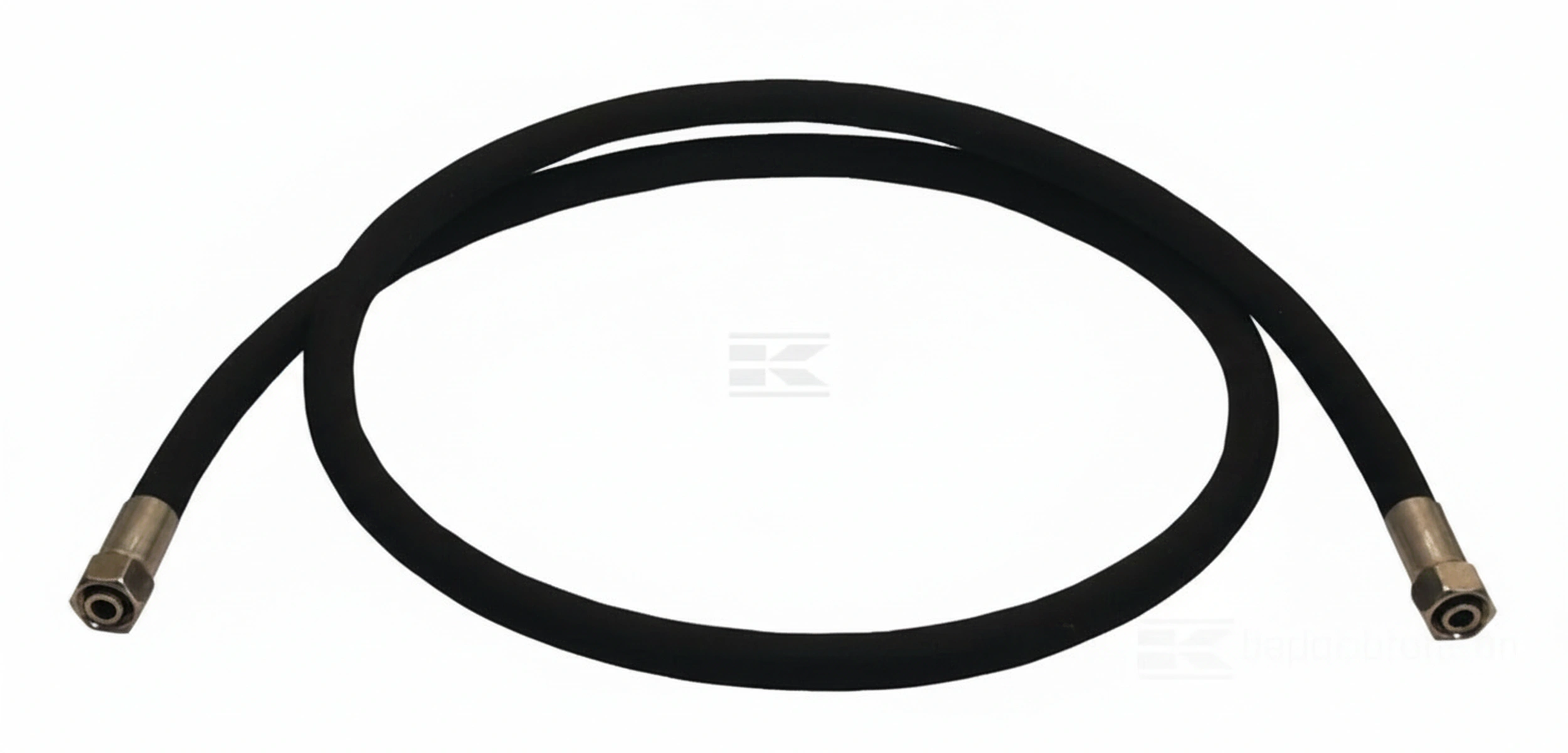

This genuine Alfagomma hydraulic hose, identified by Kramp part number DKLO132200, is a 2SN type assembly with a nominal diameter of DN12 and an overall length of 2200mm. It features DKOL 15L fittings on both ends, utilizing M22x1.5 threads. Designed for demanding applications, it offers a robust working pressure of 275 bar and a burst pressure of 1100 bar. Conforming to EN 853 2SN standard, the hose has an inner diameter of 12.5mm and an outer diameter of 23.6mm, suitable for operating temperatures ranging from -40 to 100 °C.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Alfagomma
Length (mm)
2200
Nominal Diameter DN
12
Hose Type
2SN
Connection Type 1
DKOL 15L
Connection Type 2
DKOL 15L
Thread Size 1
M22x1.5
Thread Size 2
M22x1.5
Working Pressure (bar)
275
Burst Pressure (bar)
1100
Weight (kg)
1.05
Inner Diameter (mm)
12.5
Outer Diameter (mm)
23.6
Bend Radius (mm)
200
Temperature Range (°C)
-40 to 100
Standard
EN 853 2SN
Hose Manufacturer
Alfagomma
Quality
OEM Quality
Manufacturer
Alfagomma
