Kramp - DN100250CMG2 - Standard Cylinder
Kramp - DN100250CMG2 - Standard Cylinder
Kramp - DN100250CMG2 - Standard Cylinder
Kramp - DN100250CMG2 - Standard Cylinder

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping

Pay Securely with

Kramp - DN100250CMG2 - Standard Cylinder

Kramp - DN100250CMG2 - Standard Cylinder

€196.23

(Excl. VAT)

Price

(Excl. VAT)

€196.23

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
Type
Double acting
Unit
Each
Stroke
250 mm
Min. length
479 mm
Damping type
Pneumatic - both sides - adjustable
ISO standard
15552 228/1
Rod material
Stainless steel AISI 304
BRod diameter
25 mm
Bore diameter
100 mm
Piston diameter
100 mm
Outside diameter
106,5 mm
Sealing material
Polyurethane
Cylinder material
Aluminium
SW1Rod wrench size
22.0 mm
ECylinder head length
51 mm
Max. working pressure
10 BAR
Min. working pressure
1 BAR
Rod surface treatment
Anodised
Cylinder head material
Die-cast alloy
J,QCylinder head flange width
12,5 mm4 mm
CCylinder head flange diameter
55 mm
DMounting length - rod connection
40 mm
Mounting type - cylinder connection
Thread
GCylinder length without rod and head
189 mm
Mounting thread type - rod connection
Metric
Mounting thread pitch - rod connection
1.50 mm
OCylinder head mounting holes distance
89 mm
Mounting thread diameter - rod connection
M20
Mounting thread type - cylinder connection
BSP
Housing front mounting holes thread diameter
M10
LMounting thread diameter - cylinder connection
1/2 Inch
Mounting diameter (width) - cylinder connection
89 mm
Theoretical force at 6 bar pressure - advancing
4474 N
Theoretical force at 6 bar pressure - retracting
4194 N
Mounting thread type - male/female - rod connection
Male
Manufacturer
Kramp

Similar items you might like

  • Kramp

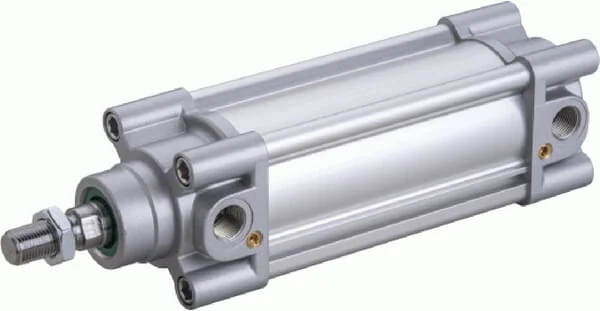

    Kramp - DN10025CMG2 - Standard Cylinder
