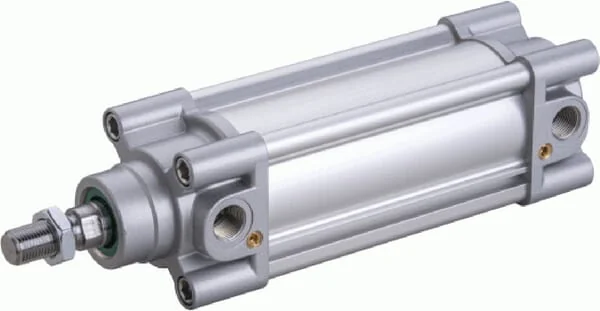

Kramp-dn40700cmg2 - Standard cylinder

OEM Quality

SKU: kramp-dn40700cmg2

Kramp-dn40700cmg2 - Standard cylinder

€193.00€164.96 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€193.00

Brand
Kramp
Part Numbers
dn40700cmg2
Type
Double acting
Unit
Each
Stroke
700 mm
Min. length
859 mm
Damping type
Pneumatic - both sides - adjustable
ISO standard
15552 228/1
Rod material
Stainless steel AISI 304
BRod diameter
16 mm
Bore diameter
40 mm
Piston diameter
40 mm
Outside diameter
51 mm
Sealing material
Polyurethane
Cylinder material
Aluminium
SW1Rod wrench size
13.0 mm
ECylinder head length
30 mm
Max. working pressure
10 BAR
Min. working pressure
1 BAR
Rod surface treatment
Anodised
Cylinder head material
Die-cast alloy
J,QCylinder head flange width
12 mm4 mm
CCylinder head flange diameter
35 mm
DMounting length - rod connection
24 mm
Mounting type - cylinder connection
Thread
GCylinder length without rod and head
135 mm
Mounting thread type - rod connection
Metric
Mounting thread pitch - rod connection
1.25 mm
OCylinder head mounting holes distance
38 mm
Mounting thread diameter - rod connection
M12
Mounting thread type - cylinder connection
BSP
Housing front mounting holes thread diameter
M6
LMounting thread diameter - cylinder connection
1/4 Inch
Mounting diameter (width) - cylinder connection
38 mm
Theoretical force at 6 bar pressure - advancing
716 N
Theoretical force at 6 bar pressure - retracting
601 N
Mounting thread type - male/female - rod connection
Male
EAN
8719493123241
Manufacturer
Kramp

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,381 genuine Kramp spare parts.
