Attachments & Lift

Hydraulic Systems

Hydraulic Cylinders

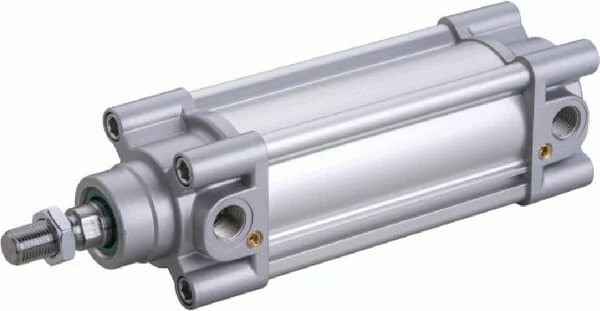

Kramp - DN63160CMG2 - Standard Cylinder

Kramp - DN63160CMG2 - Standard Cylinder

Kramp - DN63160CMG2 - Standard Cylinder

Kramp - DN63160CMG2 - Standard Cylinder

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Kramp - DN63160CMG2 - Standard Cylinder

Kramp - DN63160CMG2 - Standard Cylinder

€105.42

(Excl. VAT)

Price

(Excl. VAT)

€105.42

Number of products

Kramp

Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand

Type

Double acting

Unit

Each

Stroke

160 mm

Min. length

350 mm

Damping type

Pneumatic - both sides - adjustable

ISO standard

15552 228/1

Rod material

Stainless steel AISI 304

BRod diameter

20 mm

Bore diameter

63 mm

Piston diameter

63 mm

Outside diameter

69,5 mm

Sealing material

Polyurethane

Cylinder material

Aluminium

SW1Rod wrench size

17.0 mm

ECylinder head length

37 mm

Max. working pressure

10 BAR

Min. working pressure

1 BAR

Rod surface treatment

Anodised

Cylinder head material

Die-cast alloy

J,QCylinder head flange width

8,5 mm4 mm

CCylinder head flange diameter

45 mm

DMounting length - rod connection

32 mm

Mounting type - cylinder connection

Thread

GCylinder length without rod and head

158 mm

Mounting thread type - rod connection

Metric

Mounting thread pitch - rod connection

1.50 mm

OCylinder head mounting holes distance

56,5 mm

Mounting thread diameter - rod connection

M16

Mounting thread type - cylinder connection

BSP

Housing front mounting holes thread diameter

M8

LMounting thread diameter - cylinder connection

3/8 Inch

Mounting diameter (width) - cylinder connection

56,5 mm

Theoretical force at 6 bar pressure - advancing

1775 N

Theoretical force at 6 bar pressure - retracting

1596 N

Mounting thread type - male/female - rod connection

Male

Manufacturer

Kramp
