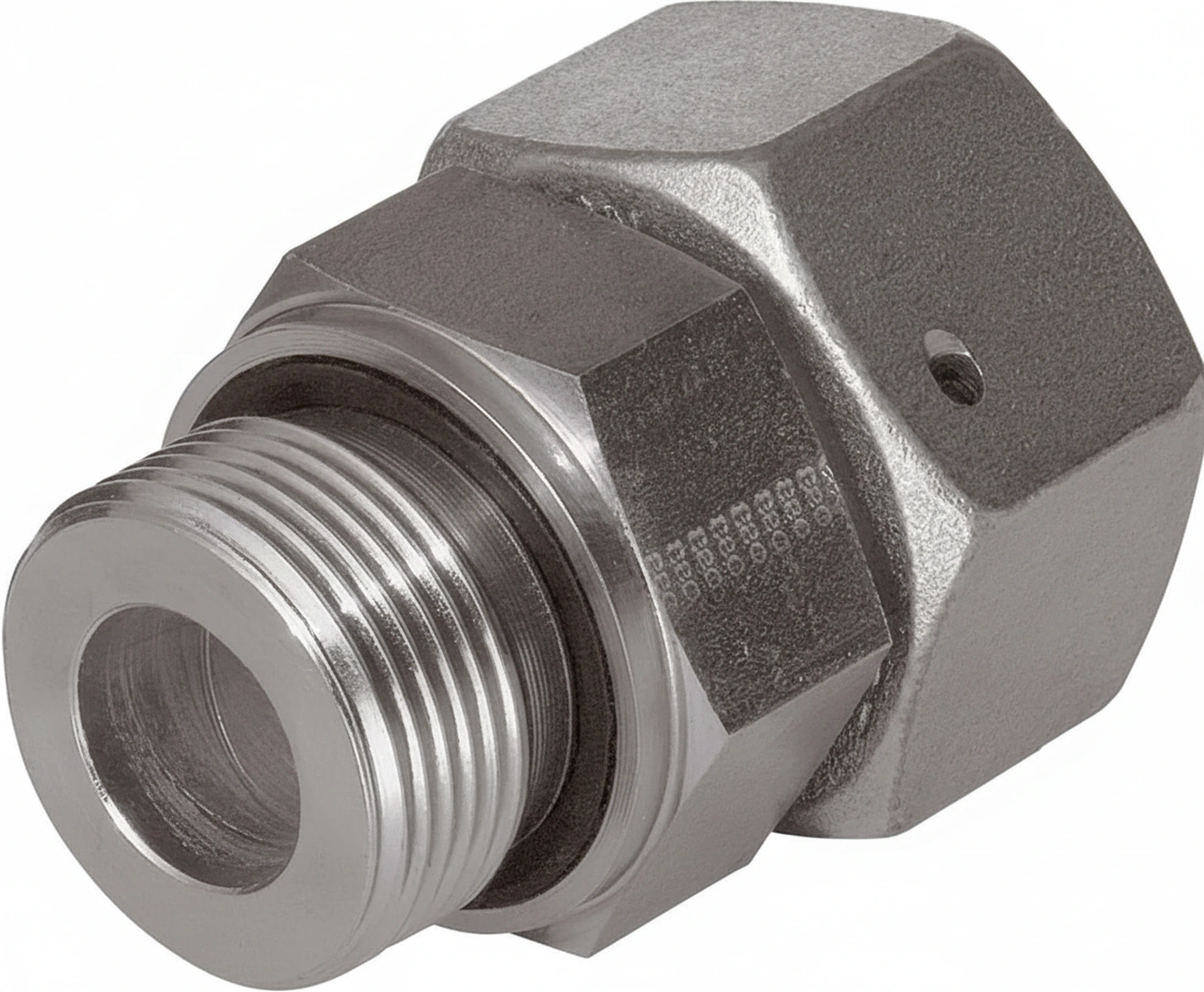

Kramp-egesd15lr34wd - Swivel connectors

OEM Quality

SKU: kramp-egesd15lr34wd

Kramp-egesd15lr34wd - Swivel connectors

€23.28

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€23.28

Genuine Kramp EGESD15LR34WD swivel connector, manufactured from durable zinc-plated steel for robust hydraulic applications. This light series coupling features an M22x1.5 metric male thread and a G 3/4" BSP female thread, designed for a maximum working pressure of 350 bar. It ensures flexible connections and prevents hose twisting in hydraulic systems.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,632 genuine Kramp spare parts.

Brand
Voss
Part Numbers
egesd15lr34wd
Thread 1 Type
M
Thread 2 Type
G
Thread 1 Size
M22x1.5
Thread 2 Size
G 3/4
Length (mm)
51.5
Width (mm)
30
Height (mm)
30
Hexagon 1 (mm)
27
Hexagon 2 (mm)
30
Max Working Pressure (bar)
350
Material
Steel
Surface Treatment
Zinc-plated
Weight (kg)
0.12
Series
Light
Connection Type
Swivel coupling
Connection 1 Type
Male thread
Connection 2 Type
Female thread
Thread 1 Diameter (mm)
22
Thread 1 Pitch (mm)
1.5
Seal Type
O-ring
Temperature Range (°C)
-30 to 100
Quality
OEM Quality
Manufacturer
Voss
