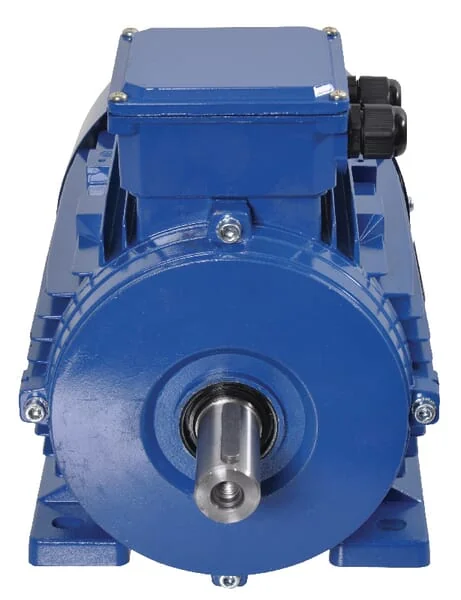

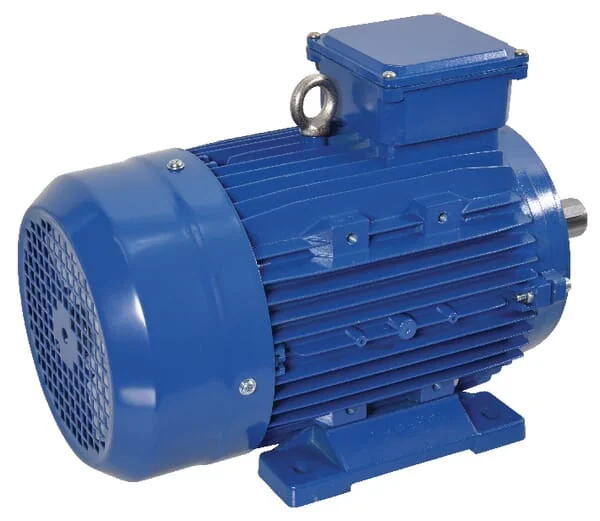

Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW
Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW
Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW
Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW
Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW
Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping

Pay Securely with

Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW

Kramp - EM100L2B3300IE3AKR - Electric Motor 3 kW

€238.75

(Excl. VAT)

Price

(Excl. VAT)

€238.75

Product Description

The Kramp EM100L2B3300IE3AKR is a high-efficiency 3 kW electric motor, designed for reliable performance in various industrial and agricultural applications. Operating at 400V and 50Hz, it delivers a speed of 2900 rpm. This IE3 efficiency class motor features a robust aluminium housing, IP55 protection, and a B3 mounting type. The shaft has a diameter of 28 mm and a length of 60 mm, making it suitable for a wide range of machinery.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 85,288 genuine Kramp spare parts.

Product Details

Brand
Kramp
In
5.59 A
N1
2851 r/min
PN
3 kW
FKey
8 mm
Unit
Each
Swivel
M20x1,5
Weight
23.7 kg
cos φ
0.89
Phase ~
3
Voltage
230/400V 50Hz V
Noise level
76 dB(A)
EShaft length
60 mm
LTotal length
388 mm
DShaft diameter
28 mm
KDiameter bore foot
12 mm
BBDiameter fan cover
199 mm
Moments of inertia (kgm²)
0,0048 kg·m²
Power factor cos phi 100%
0,89
ADistance bore foot width side
160 mm
BDistance bore foot length side
140 mm
ABDistance outside foot width side
200 mm
HDistance underside foot till centre shaft
100 mm
RDistance center shaft to end terminal box
165 mm
CDistance front motor till center first mounting hole
63 mm
Manufacturer
Kramp
