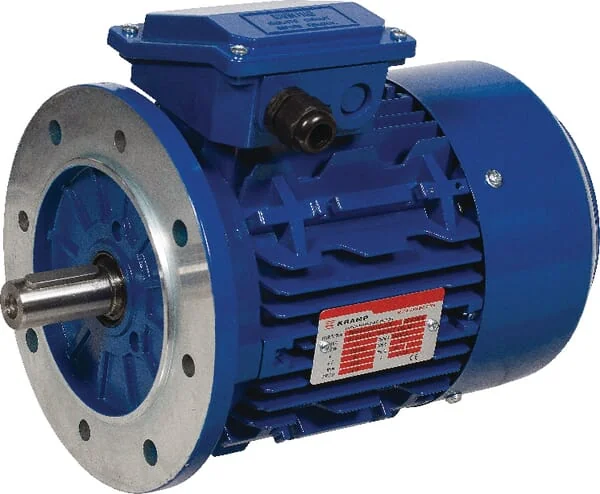

Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw
Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw
Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw
Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw
Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping

Pay Securely with

Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw

Kramp - EM112L4B5300IE3AKR - Electric Motor 4 Kw

€357.13

(Excl. VAT)

Price

(Excl. VAT)

€357.13

Product Description

The motor has an A-mark bearing High performance Base mounting possible
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
In
8.25 A
N1
1435 r/min
PN
4 kW
FKey
8 mm
Unit
Each
M (Nm)
26.62 N·m
Swivel
M25 x 1,5
Weight
33.9 kg
cos φ
0.79
Phase ~
3
Voltage
230/400V 50 Hz V
Benefits
High operational reliability Energy-saving Simple assembly
Properties
Up to and including size 132: aluminium housing From size 160: cast iron housing
Noise level
65 dB(A)
EShaft length
60 mm
LTotal length
405 mm
Technical info
Equipped with PTC At 230/400 V: Y-configuration (300) At 400/690 V: Delta configuration (500)
DShaft diameter
28 mm
Application range
Unit assembly Combination with worm gear reducer
Length of centring
4 mm
TLength of centring
4 mm
BBDiameter fan cover
220 mm
NDiameter of centring
180 mm
GHeight shaft with key
31.0 mm
MPitch circle diameter
215 mm
POutside diameter flange
250 mm
XDiameter mounting holes
15 mm
Moments of inertia (kgm²)
0,0153 kg·m²
Power factor cos phi 100%
0,82
RDistance center shaft to end terminal box
179 mm
Manufacturer
Kramp
