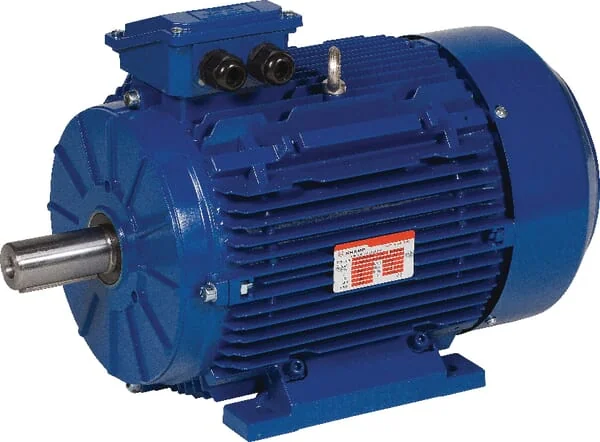

Kramp - EM132M4B3500IE3AKR - Electric Motor 7.5 kw

OEM Quality

SKU: kramp-em132m4b3500ie3akr

Kramp - EM132M4B3500IE3AKR - Electric Motor 7.5 kw

€586.39

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€586.39

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,626 genuine Kramp spare parts.

Brand
Kramp
Part Numbers
em132m4b3500ie3akr
In
14.43 A
N1
1460 r/min
PN
7.5 kW
FKey
10 mm
Unit
Each
eta %
90,4 %
Swivel
M25 x 1,5
Weight
57.4 kg
Phase ~
3
Voltage
400/690V 50Hz V
Frame size
132 mm
Noise level
71 dB(A)
Torque Ts/Tn
2.6
EShaft length
80 mm
LTotal length
505 mm
Torque Tmax/Tn
3.4 N·m
DShaft diameter
38 mm
KDiameter bore foot
12 mm
BBDiameter fan cover
259 mm
Moments of inertia (kgm²)
0,0436 kg·m²
Power factor cos phi 100%
0,84
ADistance bore foot width side
216 mm
BDistance bore foot length side
178 mm
ABDistance outside foot width side
255 mm
HDistance underside foot till centre shaft
132 mm
RDistance center shaft to end terminal box
200 mm
CDistance front motor till center first mounting hole
89 mm
EAN
8716106888559
Manufacturer
Kramp
