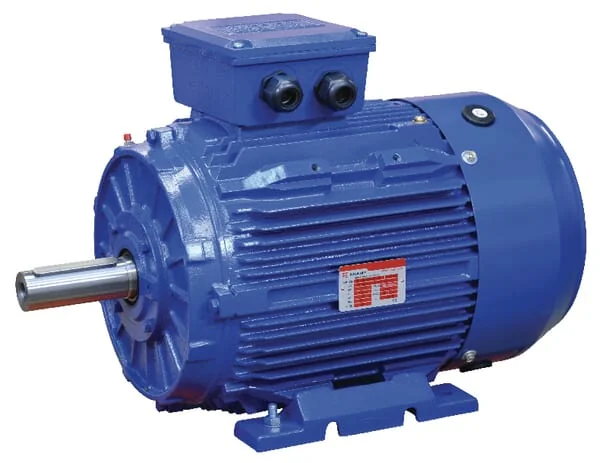

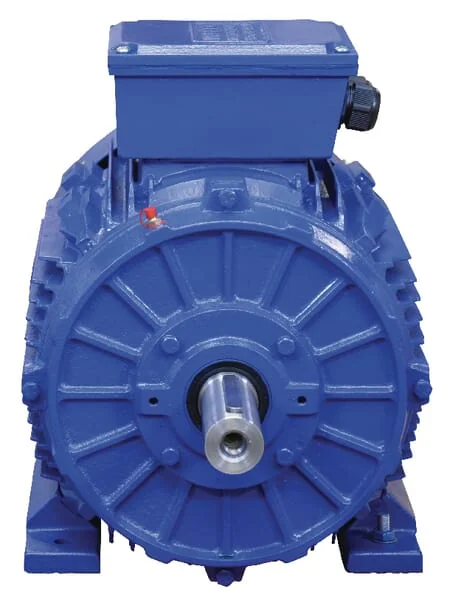

Kramp - EM180M4B3500IE3GKR - Electric Motor 18.5 Kw

OEM Quality

SKU: kramp-em180m4b3500ie3gkr

Kramp - EM180M4B3500IE3GKR - Electric Motor 18.5 Kw

€1,272.82

(excl. VAT)
RRP:€1,991.52
Save €718.74
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€1,272.82

Kramp
Kramp Groep, founded in 1951 by Johan Kramp in Varsseveld, Netherlands, is a leading European wholesaler of spare parts and accessories for the agricultural, forestry, and garden sectors. Headquartered in Varsseveld, the company has grown significantly over the decades, establishing a vast distribution network across Europe. Kramp offers an extensive and diverse product range, serving as a one-stop shop for dealers and workshops. Their catalog includes parts for tractors, implements, and various agricultural machines, encompassing everything from hydraulic components and engine parts to lighting and workshop supplies. The company focuses on providing high availability and efficient logistics to support its customers. At Partao, you can find a wide array of genuine Kramp spare parts. Our catalog includes Other Electrical Components, V-Belts, Other Merchandise & Gifts, Other Wear Parts, and Hoses & Fittings. Over 91,712 genuine Kramp spare parts are available at Partao. Kramp's strength lies in its comprehensive product offering and efficient supply chain, making it a crucial partner for agricultural businesses throughout Europe. The company's commitment to fast delivery and broad product availability helps farmers and mechanics maintain their machinery with minimal downtime, ensuring operations run smoothly.

Brand
In
33.15 A
N1
1445 r/min
PN
18.5 kW
FKey
14 mm
Unit
Each
Swivel
M32 x 1,5
Torque
121.01 N·m
Weight
169.4 kg
cos φ
0.87
Phase ~
3
Voltage
400/690V 50Hz V
Frequency
50 Hz
Noise level
76 dB(A)

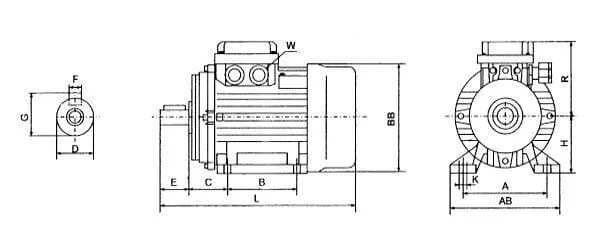

EShaft length
110 mm
LTotal length
687 mm
DShaft diameter
48 mm
Material housing
Cast iron
KDiameter bore foot
15 mm
BBDiameter fan cover
360 mm
GHeight shaft with key
42.5 mm
Moments of inertia (kgm²)
0,1553 kg·m²
Power factor cos phi 100%
0,86
ADistance bore foot width side
279 mm
BDistance bore foot length side
241 mm
ABDistance outside foot width side
348 mm
HDistance underside foot till centre shaft
180 mm
RDistance center shaft to end terminal box
259 mm
CDistance front motor till center first mounting hole
121 mm
EAN
8716106887699
Manufacturer
Kramp
