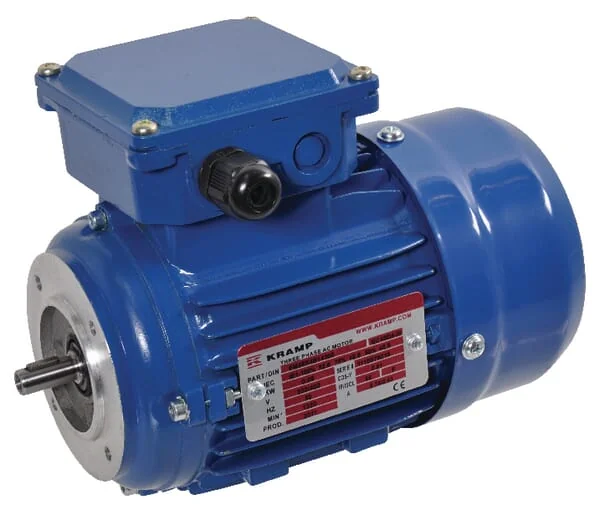

Kramp - EM63A4B14300IE2A - Electric Motor 0.12 kW

OEM Quality

SKU: kramp-em63a4b14300ie2a

Kramp - EM63A4B14300IE2A - Electric Motor 0.12 kW

€58.73

(excl. VAT)
RRP:€91.19
Save €32.46

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€58.73

Kramp
Kramp Groep, founded in 1951 by Johan Kramp in Varsseveld, Netherlands, is a leading European wholesaler of spare parts and accessories for the agricultural, forestry, and garden sectors. Headquartered in Varsseveld, the company has grown significantly over the decades, establishing a vast distribution network across Europe. Kramp offers an extensive and diverse product range, serving as a one-stop shop for dealers and workshops. Their catalog includes parts for tractors, implements, and various agricultural machines, encompassing everything from hydraulic components and engine parts to lighting and workshop supplies. The company focuses on providing high availability and efficient logistics to support its customers. At Partao, you can find a wide array of genuine Kramp spare parts. Our catalog includes Other Electrical Components, V-Belts, Other Merchandise & Gifts, Other Wear Parts, and Hoses & Fittings. Over 86,632 genuine Kramp spare parts are available at Partao. Kramp's strength lies in its comprehensive product offering and efficient supply chain, making it a crucial partner for agricultural businesses throughout Europe. The company's commitment to fast delivery and broad product availability helps farmers and mechanics maintain their machinery with minimal downtime, ensuring operations run smoothly.

Brand
BB
122 mm
In
0.44 A
N1
1380 r/min
PN
0.12 kW
FKey
4 mm
Norm
IEC/DIN - VDE 0530
Size
63 Inch
Type
Rotary current asynchronous motor
Unit
Each
Colour
RAL 5000 Violet blue
Swivel
M16x1,5
Weight
3.5 kg
cos φ
0.65
Phase ~
3
Benefits
High level of operational reliability
Efficiency
IE2
Frame size
63.0 mm
Properties
Up to and including size 90: aluminium housing From size 100: cast iron housing
Noise level
52 dB(A)
Construction
IM 3601 (B14)
Power factor
0,65
Voltage type
AC
EShaft length
20.5 mm
LTotal length
217 mm
Rated current
0,4 A
Rated voltage
400 V
Cooling system
Air
Nominal torque
2,2 nm
Technical info
At 230/400 V: Y-configuration (300) At 400/690 V: Delta configuration (500)
DShaft diameter
11 mm
Isolation class
F
Rated frequency
50-50 Hz
Insulation class
55
Number of phases
3
Protection class
IP 55
Revolutions max.
1500 r/min
Application range
Unit assembly Combination with worm gear reducer
Length of centring
2.5 mm
NDiameter of centring
60 mm
MPitch circle diameter
75 mm
PDiameter lead in edge
90 mm
XDiameter mounting holes
M5 mm
Moments of inertia (kgm²)
0,00027 kg·m²
Power factor cos phi 100%
0,65
RDistance center shaft to end terminal box
108 mm
EAN
8719493097351
Manufacturer
Kramp
