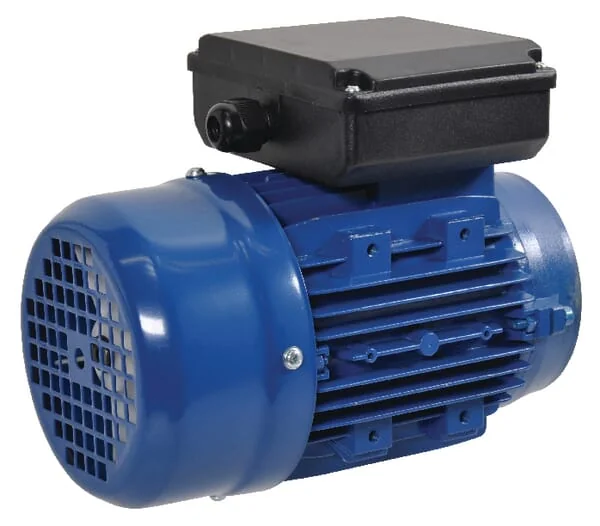

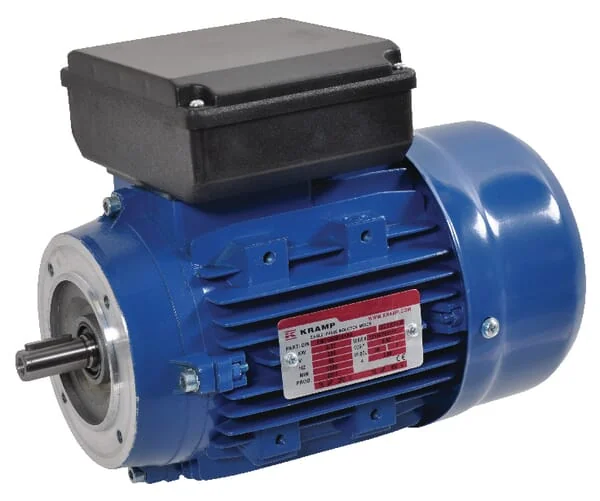

Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW
Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW
Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW
Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW
Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW
Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW

Kramp - EM71A2B141B0IE2A - Electric Motor 0.37 kW

€88.54

(Excl. VAT)

Price

(Excl. VAT)

€88.54

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
In
2.54 A
N1
2780 r/min
PN
0.37 kW
FKey
5 mm
Norm
IEC/DIN - VDE 0530
Unit
Each
Model
MY2 711-2
Power
0.37 kW
Colour
RAL 5000 Violet blue
Swivel
M20x1,5
Weight
6.15 kg
Current
at 220V 2.49 A Aat 230V 2.39 A Aat 240V 2.29 A A
Phase ~
1
Voltage
230 V
Benefits
High level of operational reliability
Efficiency
69.5
Frame size
71 mm
Properties
Aluminium housing
Noise level
75 dB(A)
Power factor
0,97
Torque Ts/Tn
0.5
EShaft length
30 mm
LTotal length
241 mm
Technical info
1A0 with start and run capacitor 1B0 with run capacitor
Torque Tmax/Tn
1.64 N·m
DShaft diameter
14 mm
Isolation class
F
Protection class
IP 55
Revolutions max.
2780 r/min
Starting Current
9.5 A
Application range
Unit assembly Combination with worm gear reducer
Length of centring
3.5 mm
Max rotation speed
2790 r/min
BBDiameter fan cover
147 mm
NDiameter of centring
70 mm
MPitch circle diameter
85 mm
PDiameter lead in edge
105 mm
Current at 1 phase 230V
2.54 A
XDiameter mounting holes
M6 mm
Moments of inertia (kgm²)
0,0003 kg·m²
Power factor cos phi 100%
0,93
RDistance center shaft to end terminal box
125 mm
Manufacturer
Kramp

Similar items you might like

  • Kramp

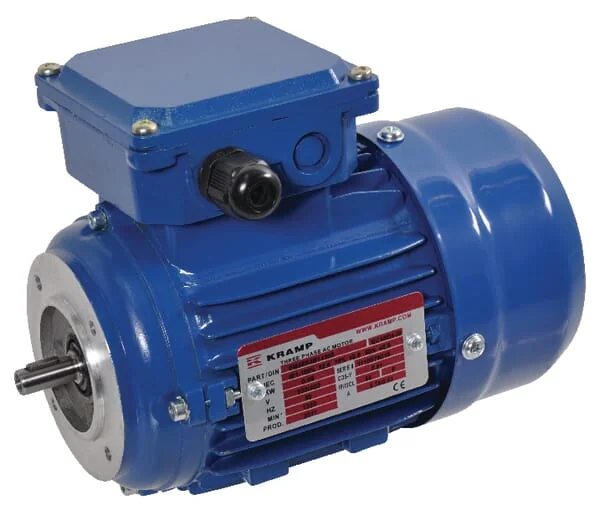

    Kramp - EM71A2B14300IE2A - Electric Motor 0.37 kW
