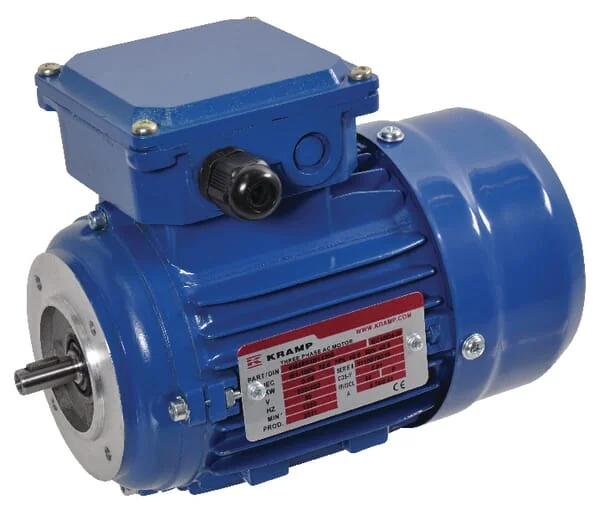

Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56
Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56
Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56
Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56
Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56
Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56

Kramp - EM71B4B14301IE2A - Electric Motor 0.37 KW IP56

€81.95

(Excl. VAT)

Price

(Excl. VAT)

€81.95

Product Description

The motor has an A-mark bearing Higher moisture protection class
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
N1
1400 r/min
PN
0.4 kW
Type
Rotary current asynchronous motor
Unit
Each
Benefits
High operational reliability Wider range of applications
Efficiency
IE2
Frame size
71.0 mm
Properties
Up to and including size 90: aluminium housing From size 100: cast iron housing
Construction
IM 3601 (B14)
Power factor
0,7
Voltage type
AC
Rated current
1 A
Rated voltage
400 V
Cooling system
Air
Nominal torque
2,4 nm
Technical info
At 230/400 V: Y-configuration (300) At 400/690 V: Delta configuration (500)
DShaft diameter
14.00 mm
Rated frequency
50-50 Hz
Insulation class
56
Number of phases
3
Application range
Unit assembly Combination with worm gear reducer
Manufacturer
Kramp
