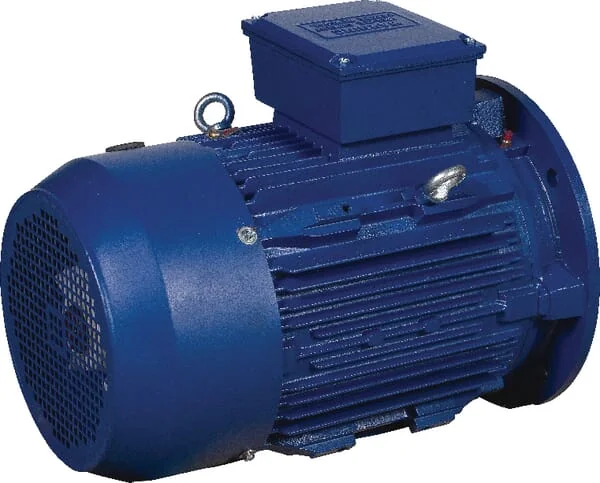

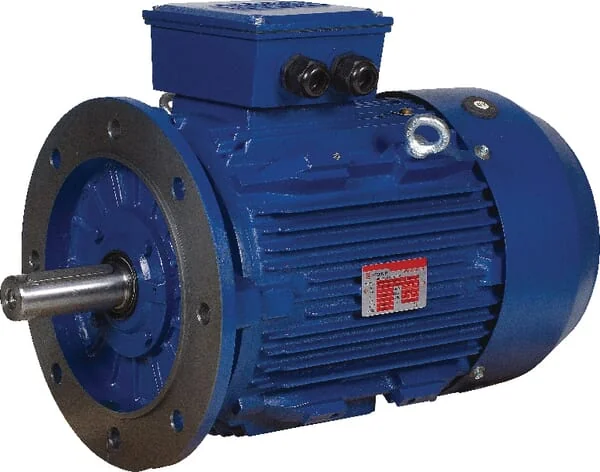

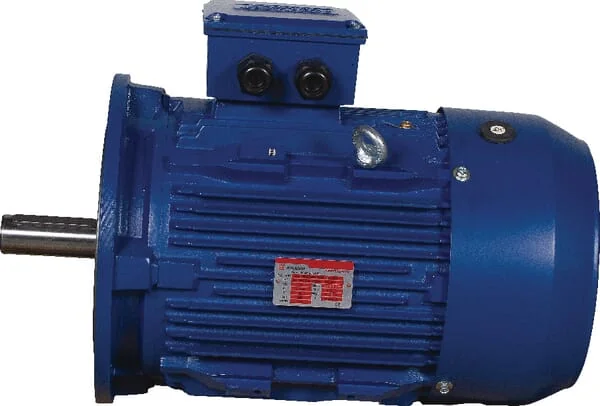

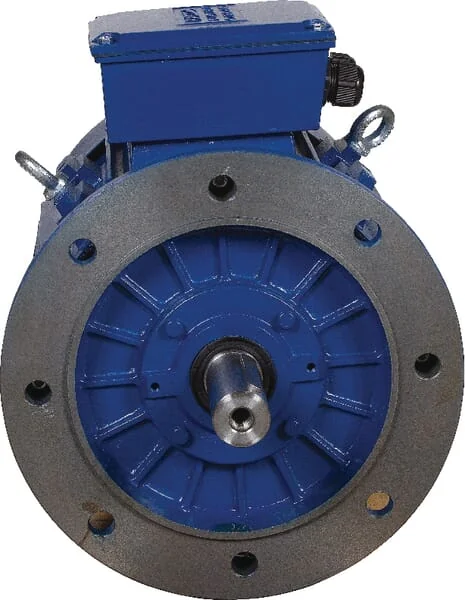

Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW
Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW
Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW
Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW
Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW
Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW

Kramp - EM80B2B5300IE3AKR - Electric Motor 1.1 KW

€129.36

(Excl. VAT)

Price

(Excl. VAT)

€129.36

Product Description

The motor has an A-mark bearing High performance Base mounting possible
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
In
2.43 A
N1
2846 r/min
PN
1.1 kW
FKey
6 mm
Unit
Each
M (Nm)
3.69 N·m
Swivel
M20 x 1,5
Weight
10.6 kg
cos φ
0.79
Phase ~
3
Voltage
230/400V 50 Hz V
Benefits
High operational reliability Energy-saving Simple assembly
Properties
Up to and including size 132: aluminium housing From size 160: cast iron housing
Noise level
67 dB(A)
EShaft length
40 mm
LTotal length
280 mm
Technical info
Equipped with PTC At 230/400 V: Y-configuration (300) At 400/690 V: Delta configuration (500)
DShaft diameter
19 mm
Application range
Unit assembly Combination with worm gear reducer
Length of centring
3.5 mm
TLength of centring
3.5 mm
BBDiameter fan cover
158 mm
NDiameter of centring
130 mm
GHeight shaft with key
15.5 mm
MPitch circle diameter
165 mm
POutside diameter flange
200 mm
XDiameter mounting holes
12 mm
Moments of inertia (kgm²)
0,0013 kg·m²
Power factor cos phi 100%
0,82
RDistance center shaft to end terminal box
140 mm
Manufacturer
Kramp
