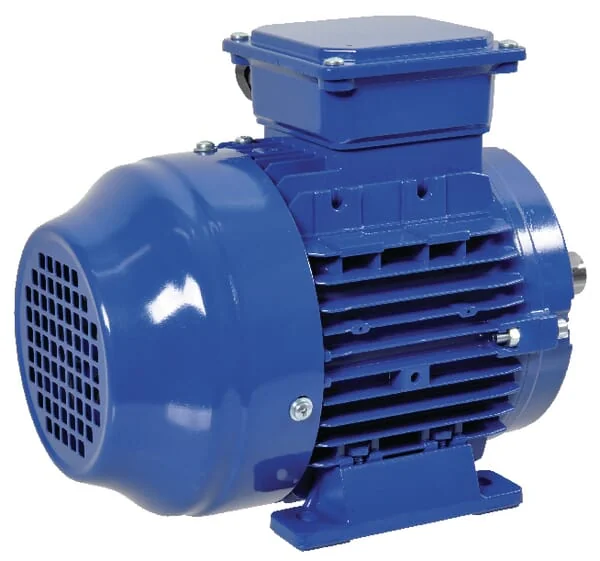

Kramp - EM80B4B3300IE3AKR - Electric Motor 0.75 kW

OEM Quality

SKU: kramp-em80b4b3300ie3akr

Kramp - EM80B4B3300IE3AKR - Electric Motor 0.75 kW

€127.62

(excl. VAT)
RRP:€193.96
Save €66.33

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€127.62

Genuine Kramp IE3 efficiency class electric motor, model EM80B4B3300IE3AKR, designed for reliable performance in agricultural and industrial machinery. This 0.75 kW (1 HP) motor operates at 230/400V with a frequency of 50 Hz, delivering a nominal speed of 1400 rpm. It features a robust B3 foot mounting and an IP55 protection class, ensuring durability against dust and water ingress. The motor has an 80 frame size and a 19 mm shaft diameter, making it suitable for a wide range of applications requiring efficient and consistent power.
Kramp
Kramp Groep, founded in 1951 by Johan Kramp in Varsseveld, Netherlands, is a leading European wholesaler of spare parts and accessories for the agricultural, forestry, and garden sectors. Headquartered in Varsseveld, the company has grown significantly over the decades, establishing a vast distribution network across Europe. Kramp offers an extensive and diverse product range, serving as a one-stop shop for dealers and workshops. Their catalog includes parts for tractors, implements, and various agricultural machines, encompassing everything from hydraulic components and engine parts to lighting and workshop supplies. The company focuses on providing high availability and efficient logistics to support its customers. At Partao, you can find a wide array of genuine Kramp spare parts. Our catalog includes Other Electrical Components, V-Belts, Other Merchandise & Gifts, Other Wear Parts, and Hoses & Fittings. Over 86,632 genuine Kramp spare parts are available at Partao. Kramp's strength lies in its comprehensive product offering and efficient supply chain, making it a crucial partner for agricultural businesses throughout Europe. The company's commitment to fast delivery and broad product availability helps farmers and mechanics maintain their machinery with minimal downtime, ensuring operations run smoothly.

Brand
Part Numbers
em80b4b3300ie3akr
In
1.73 A
N1
1420 r/min
PN
0.75 kW
FKey
6 mm
Unit
Each
Swivel
M20 x 1,5
Weight
11.7 kg
cos φ
0.76
Phase ~
3
Voltage
230/400V 50 Hz V
Noise level
58 dB(A)

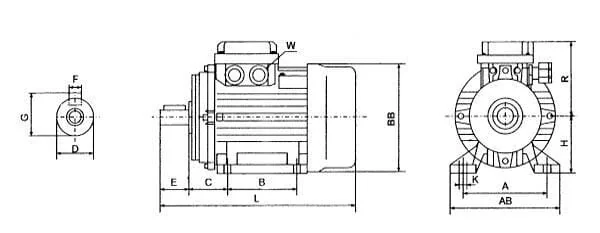

EShaft length
40 mm
LTotal length
280 mm
DShaft diameter
19 mm
KDiameter bore foot
9 mm
BBDiameter fan cover
158 mm
GHeight shaft with key
15.5 mm
Moments of inertia (kgm²)
0,0023 kg·m²
Power factor cos phi 100%
0,73
ADistance bore foot width side
125 mm
BDistance bore foot length side
100 mm
ABDistance outside foot width side
160 mm
HDistance underside foot till centre shaft
80 mm
RDistance center shaft to end terminal box
140 mm
CDistance front motor till center first mounting hole
50 mm
EAN
8716106886197
Manufacturer
Kramp
