Kramp - EPL50200CB - Kramp Cylinder EPL 50-200 CB-series - EPL50200CB, 5700038824764

OEM Quality

SKU: kramp-epl50200cb

Kramp - EPL50200CB - Kramp Cylinder EPL 50-200 CB-series - EPL50200CB, 5700038824764

€199.93€170.88 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€199.93

Brand
Kramp
Part Numbers
EPL50200CB; 5700038824764
Pros
Ready to use Long service life High level of operational reliability
Type
Single acting
Unit
Each

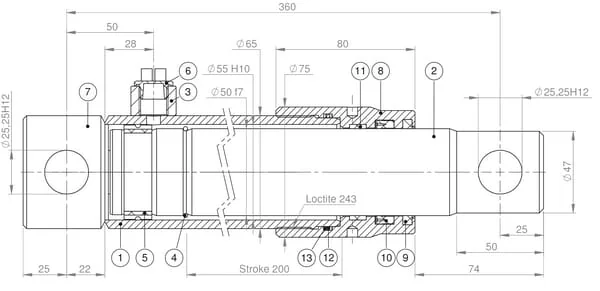

Stroke
200 mm
Min. length
361 mm
Rod diameter
50 mm
Inside diameter
55 mm
Product details
Fully mounted Unique, innovative design Special circlip on piston All methods of mounting possible Pre-sprayed with primer Maximum radial load: 10% of the axial force Maximum operating pressure depends on the maximum buckling load The maximum buckling load can be found using the cylinder software
Outside diameter
65 mm
Application category
Universal
Cylinder head length
80 mm
Mounting head length
50 mm
Max. working pressure
250 BAR
Min. mounting holes distance
360 mm
Cylinder head outside diameter
75 mm
Mounting head outside diameter
47 mm
Mounting type - rod connection
Bore
Oil connection inside diameter
25,25 mm
Mounting type - cylinder connection
Bore
Mounting hole diameter - rod connection
25,25 mm
Mounting hole center to rod end distance
25 mm
Mounting diameter (width) - rod connection
25,4 mm
Mounting hole diameter - cylinder connection
25,3 mm
Mounting thread diameter - cylinder connection
3/8 Inch
Mounting diameter (width) - cylinder connection
25,4 mm
Oil connection centre to mounting hole centre distance
50 mm
EAN
5700038824764
Manufacturer
Kramp

Fully mounted Unique, innovative design Special circlip on piston All methods of mounting possible Pre-sprayed with primer Maximum radial load: 10% of the axial force Maximum operating pressure depends on the maximum buckling load The maximum buckling load can be found using the cylinder software
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,384 genuine Kramp spare parts.
