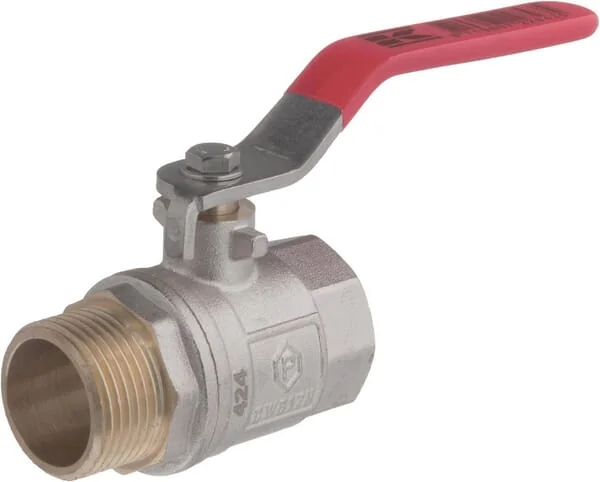

Kramp-ks1mkr - Ball valve BSP fem./male 1" + SS handle

OEM Quality

SKU: kramp-ks1mkr

Kramp-ks1mkr - Ball valve BSP fem./male 1" + SS handle

€11.86

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€11.86

2-way ball valve with full bore Nickel-plated brass enclosure (CW617N, DIN 50930-6) Ball made from hard chrome-plated brass (CW614N) Stainless steel lever and bolt PTFE ball seals EPDM lever seals Conical thread according to ISO 7-1 and DIN 2999-1
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,626 genuine Kramp spare parts.

Brand
Kramp
Part Numbers
ks1mkr
Type
Manual valve
Unit
Each
ATotal length
70,5 mm
Housing width
42,5 mm
Connection type
Thread
LHHandle length
110 mm
Number of ports
2
Product details
2-way ball valve with full bore Nickel-plated brass enclosure (CW617N, DIN 50930-6) Ball made from hard chrome-plated brass (CW614N) Stainless steel lever and bolt PTFE ball seals EPDM lever seals Conical thread according to ISO 7-1 and DIN 2999-1
Connection 2, type
Thread
ODOutside diameter
42,5 mm
Number of positions
2
Max working pressure
25 BAR
Connection thread type
BSPT
IDNominal inner diameter
23 mm
Connection 2, thread type
BSPT
Connection thread diameter
1 Inch
L1Connection thread length
14,5 mm
HCenter bore to top distance
58,3 mm
Connection type - male/female
Female
L2Connection 2, thread length
17 mm
TDConnection 2, thread diameter
1 Inch
Connection 2, type - male/female
Male
EAN
8719607228435
Manufacturer
Kramp
