Kramp - LA228801KR - Flat Ball End 28.8mm
Kramp - LA228801KR - Flat Ball End 28.8mm
Kramp - LA228801KR - Flat Ball End 28.8mm
Kramp - LA228801KR - Flat Ball End 28.8mm

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Kramp - LA228801KR - Flat Ball End 28.8mm

Kramp - LA228801KR - Flat Ball End 28.8mm

€12.63

(Excl. VAT)

Price

(Excl. VAT)

€12.63

Product Description

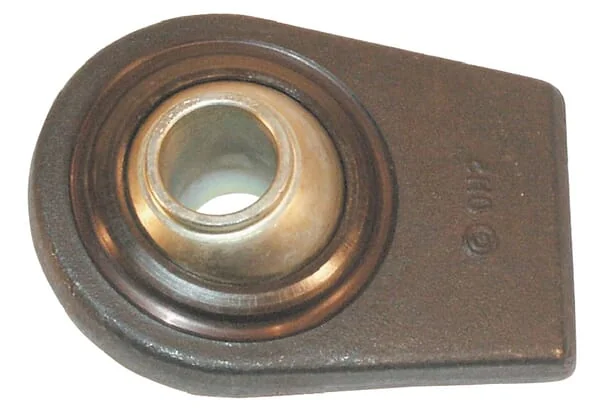

The Kramp LA228801KR is a genuine Cat 2 top link end, also known as a ball catch hook (KF type), designed for robust agricultural applications. This high-quality steel component features a 28.8mm ball diameter and a 25.4mm (1 inch) pin diameter, ensuring a secure connection for various implements. It has an M30x3.5 thread for easy installation into a top link rod and an overall length of 140mm. Weighing 0.84kg, this Kramp top link end provides a reliable and durable replacement part for tractors and machinery requiring a Cat 2 top link connection.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
Unit
Each
Category
2
BThickness
18 mm
Properties
Material 16 Mn Cr 5 (chrome-manganese steel, hardened) High-quality
AHole length
45 mm
DHole diameter
28,8 mm
Application range
For lifting arms For intensive use
HConnection width (length)
70 mm
RHole centre to the end radius
44 mm
LHole centre to connection point distance
80 mm
Manufacturer
Kramp
