Kramp - OMR315WHD - HYDRAULIC MOTOR
Kramp - OMR315WHD - HYDRAULIC MOTOR

Last known price:

€445.45

Get an up-to-date price and availability

Request a Quote

Pay Securely with

Kramp - OMR315WHD - HYDRAULIC MOTOR

Kramp - OMR315WHD - HYDRAULIC MOTOR

Last known price:

€445.45

Request a Quote

Product Description

The Kramp OMR315WHD is a robust orbital hydraulic motor designed for demanding agricultural and industrial applications. Featuring a displacement of 315 cm³/rev, this motor is equipped with a 32 mm cylindrical shaft with a parallel key and a standard 4-hole mounting flange (Ø101.6 mm). It offers a maximum continuous pressure of 175 bar and an intermittent pressure of 210 bar, with a maximum speed of 190 rpm and a maximum torque of 670 Nm. The motor includes G 1/2" ports and a G 1/4" drain port, ensuring reliable performance and high efficiency.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
kramp
Displacement Cm3 Rev
315
Shaft Type
cylindrical
Shaft Diameter (mm)
32
Mounting Type
4-hole
Mounting Diameter (mm)
101.6
Port Size
G 1/2 inch
Drain Port Size
G 1/4 inch
Max Speed (rpm)
190
Max Torque (Nm)
670
Max Continuous Pressure (bar)
175
Max Intermittent Pressure (bar)
210
Weight (kg)
10.5
Length (mm)
195
Quality
OEM Quality
Manufacturer
kramp

Similar items you might like

  • Kramp

    Kramp - OMRX10011185588 - Orbit Motor, Shaft Diameter 1" Z6 A2

    Kramp

    €461.96

  • Kramp

    Kramp - OMRX10011186674 - Orbit Motor, Shaft Diameter 25 A2

    Kramp

    €410.39

  • Kramp

    Kramp - OMRW2001516867 - Wheel Motor, Shaft Diameter 1 1/4" Tapered

    Kramp

    €413.58

  • Kramp

    Kramp - OMRX31511186652 - Orbit Motor, Shaft Diameter 25 A2

    Kramp

    €325.68

  • Kramp

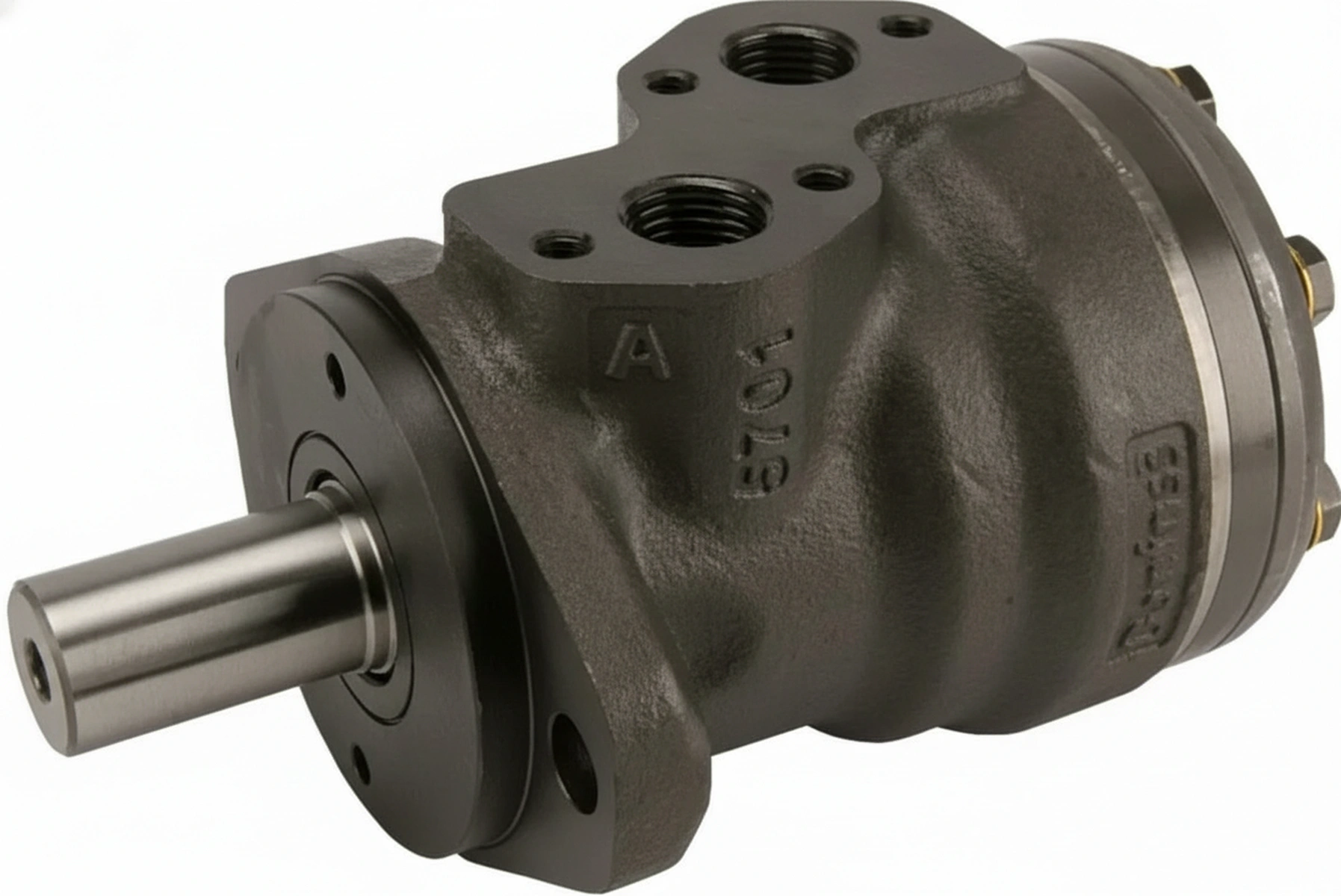

    Kramp - OMRX5011185537 - Orbit Motor, Shaft Diameter 25 A2

    Kramp

    €237.22

  • Kramp

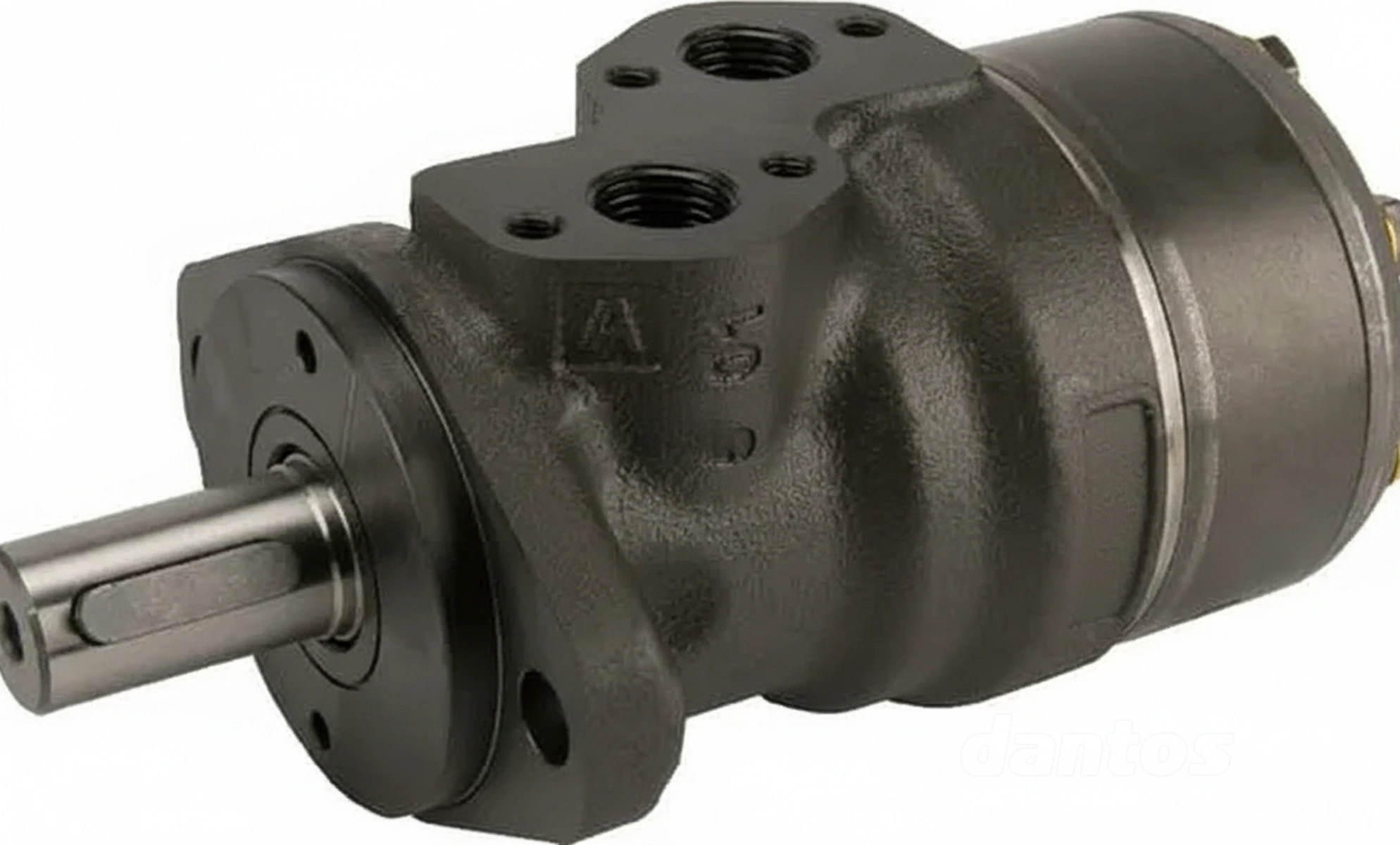

    Kramp - OMRX25011186667 - Orbit Motor, Shaft Diameter 25 A2

    Kramp

    €412.41

  • Kramp

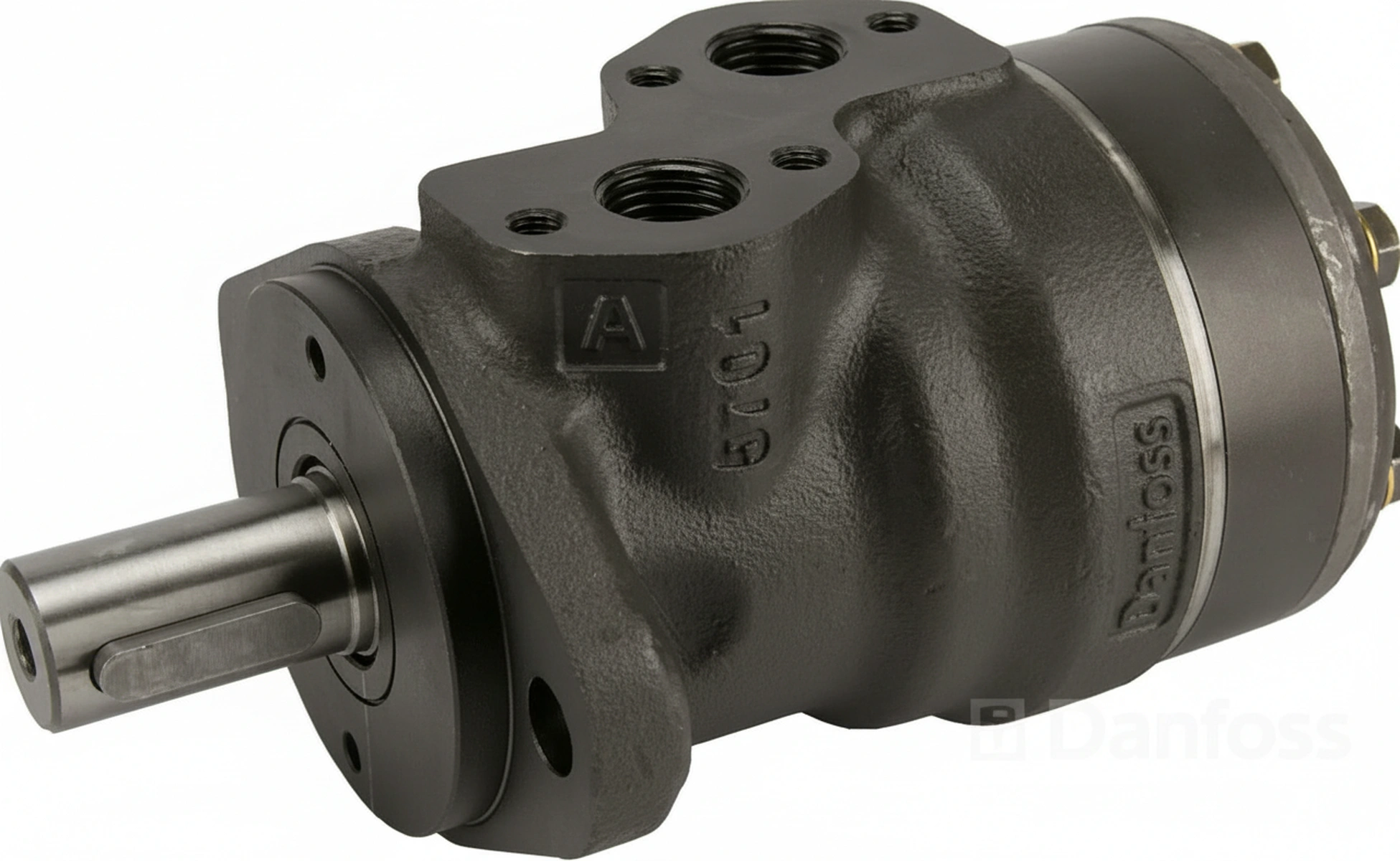

    Kramp - OMRX16011186658 - Orbit Motor, Shaft Diameter 25 A2
