Kramp - PV32M14NC - Valve, 3/2 Air Piloted 1/4"
Kramp - PV32M14NC - Valve, 3/2 Air Piloted 1/4"
Kramp - PV32M14NC - Valve, 3/2 Air Piloted 1/4"
Kramp - PV32M14NC - Valve, 3/2 Air Piloted 1/4"

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Kramp - PV32M14NC - Valve, 3/2 Air Piloted 1/4"

Kramp - PV32M14NC - Valve, 3/2 Air Piloted 1/4"

€34.31

(Excl. VAT)

Price

(Excl. VAT)

€34.31

Product Description

The Kramp PV32M14NC is a genuine 3/2 air piloted valve, designed for reliable control in pneumatic systems. Featuring a 1/4 inch connection, an aluminium body, and NBR seals, it operates efficiently within a 0-10 bar working pressure range and -10 to +60 °C temperature. With a flow rate of 600 L/min, this valve is suitable for various agricultural and industrial machinery applications.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

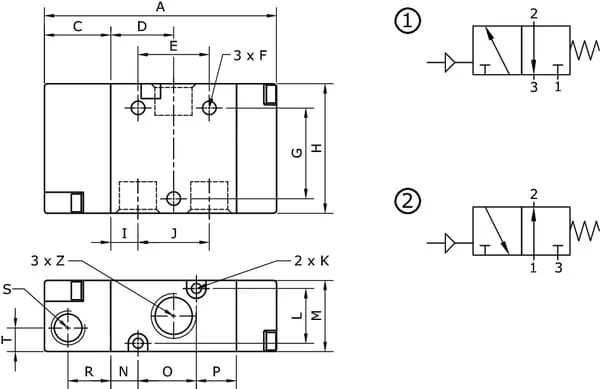

Product Details

Brand
Kramp
Bore
G 1/8
Type
Spool valve, spring return
Unit
Each
Bore F
5.30 mm
Type 2
NC
Nen Flow
1200 NI/min
ALength A
71.70 mm
Actuation
Pneumatically
CLength C
20,50 mm
DLength D
19,40 mm
HHeight H
40 mm
MHeight M
22 mm
Connection
G 1/4
Material seal
NBR
KBore diameter
3.10 mm
Material housing
Anodized aluminium, coated
Switching symbol
1
Pilot pressure range
2 - 10 BAR
RHole center distance
13.20 mm
Working pressure max.
10 BAR
Working pressure min.
0 BAR
GDistance center to center
28.00 mm
EDistance for locating holes
22 mm
Distance center hole to right side
8.40 mm
ODistance center hole to left side
18 mm
JDistance mounting holes center to center
22 mm
Distance mounting holes center to center long side
12.40 mm
Distance mounting holes center to center short side
8.40 mm
Distance mounting holes short side center to center
16,90 mm
Manufacturer
Kramp
