Kramp - PV53M12CC - Kramp 5/3 pneumatic valve 1/2" - PV53M12CC, 8716106824946

OEM Quality

SKU: kramp-pv53m12cc

Kramp - PV53M12CC - Kramp 5/3 pneumatic valve 1/2" - PV53M12CC, 8716106824946

€151.56€129.54 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€151.56

Brand
Kramp
Part Numbers
PV53M12CC; 8716106824946
Bore
G 1/8
Type
Spool valve, spring return
Unit
Each
Type 2
CC
FBore F
5.3 mm
Nen Flow
5000 NI/min

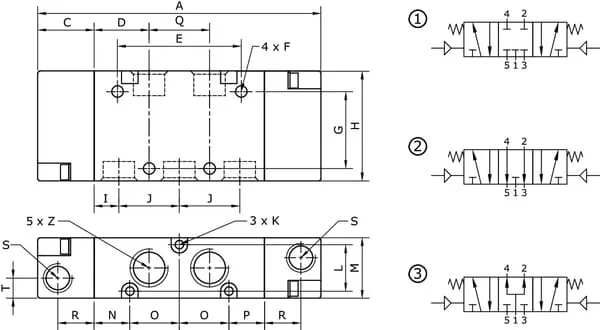

ALength A
189.6 mm
Actuation
Pneumatically
CLength C
35 mm
DLength D
37.8 mm
HHeight H
32 mm
MHeight M
22 mm
Connection
G 1/2 BSP
TDistance T
9 mm
Installation
Free
Material seal
NBR
Mounting type
Through-bore
KBore diameter
3.1 mm
Material housing
Anodized aluminium, coated
Switching symbol
1
Pilot pressure range
2 - 10 BAR
RHole center distance
26.8 mm
Working pressure max.
10 BAR
Working pressure min.
0 BAR
GDistance center to center
23 mm
EDistance for locating holes
88 mm
QCenter to center pressure side
44 mm
ODistance center hole to left side
44 mm
PDistance center hole to right side
15.8 mm
JDistance mounting holes center to center
44 mm
NDistance mounting holes center to center long side
15.8 mm
IDistance mounting holes center to center short side
15.8 mm
LDistance mounting holes short side center to center
16.9 mm
EAN
8716106824946
Manufacturer
Kramp

Kramp 5/3 pneumatic valve 1/2", part number PV53M12CC, is an aftermarket part made to OEM quality standards. It is a slide valve with spring return, featuring pneumatic actuation and a G 1/2 BSP connection. The body is made of coated, anodized aluminum with NBR seals.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,384 genuine Kramp spare parts.
