Kramp-sfb63pn - Swivel flange

OEM Quality

SKU: kramp-sfb63pn

Kramp-sfb63pn - Swivel flange

€19.46

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€19.46

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,632 genuine Kramp spare parts.

Brand
Kramp
Part Numbers
sfb63pn

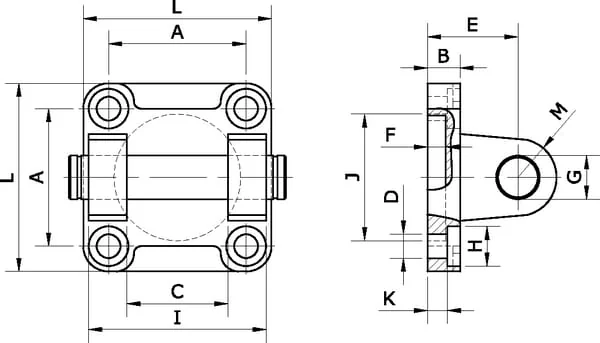

LL
75 mm
MM
16 max mm
Unit
Each
Height J
Ø 45 H11 mm
Material
Aluminium
CLength C
40 mm
FLength F
5 mm
ILength I
70 mm
KLength K
6.5 mm
BThickness
11 mm
Consists of

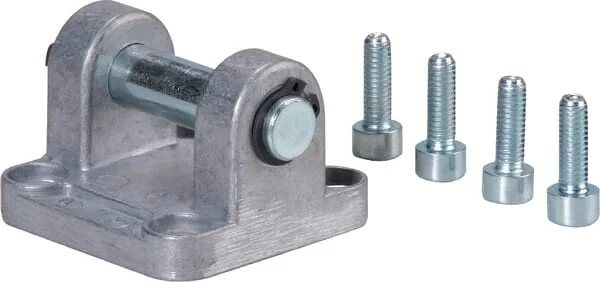

Swivel flange including axle bolt and circlip, 4 screws
Cylinder Ø
63 mm
For cylinder
DIN ISO 21287, DIN ISO 15552
GCenter bore
Ø 16 H9 mm
HBore diameter
Ø 15 H13 mm
ECenter hole distance
32 mm
DDiameter mounting holes
Ø 9 H13 mm
ADistance for locating holes
56,5 mm
EAN
8716106691968
Manufacturer
Kramp
