Kramp-skvf12l22 - QR coupling Female
Kramp-skvf12l22 - QR coupling Female

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

Kramp-skvf12l22 - QR coupling Female

Kramp-skvf12l22 - QR coupling Female

€40.16

(Excl. VAT)

Price

(Excl. VAT)

€40.16

Product Description

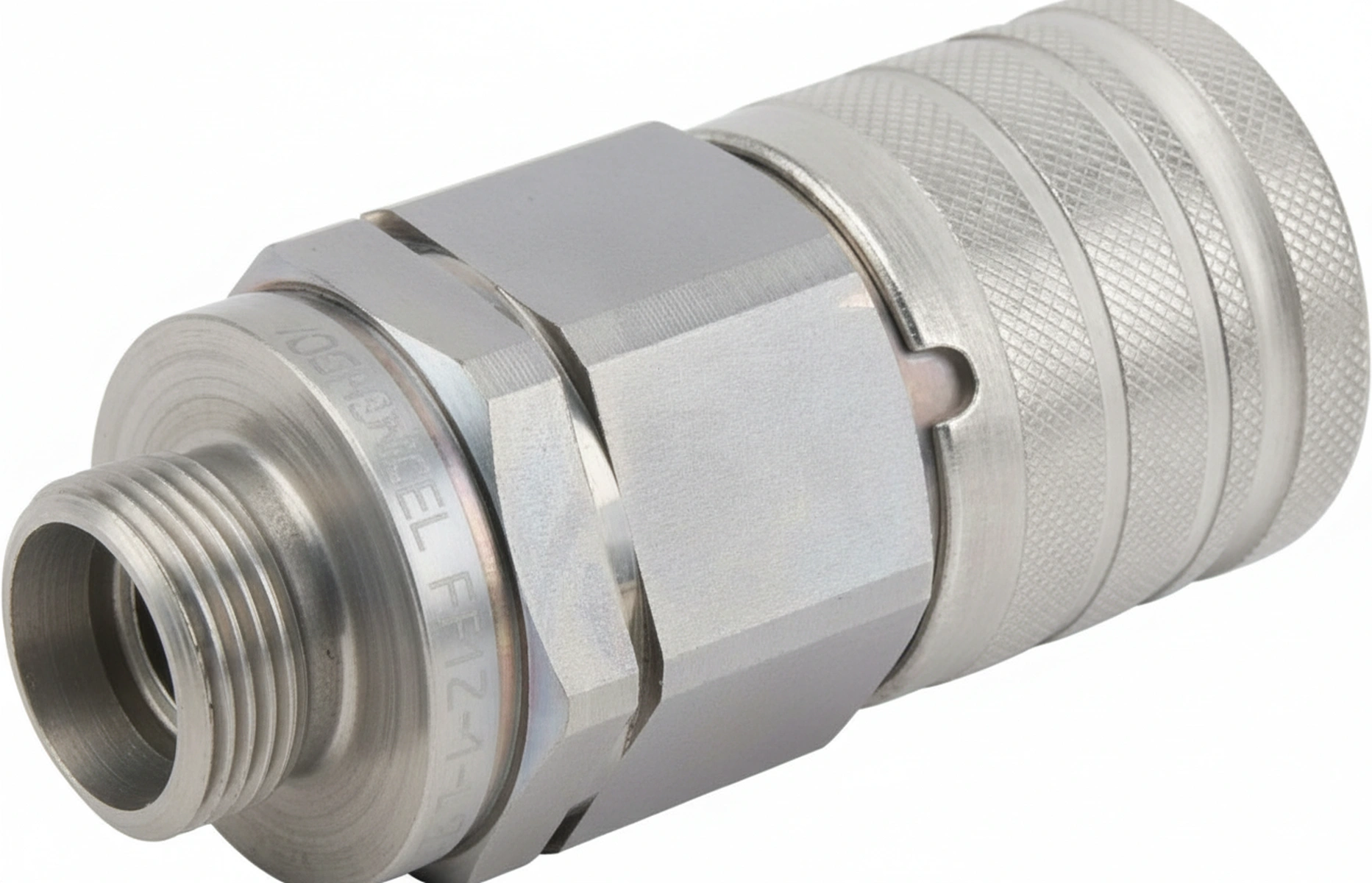

The DNP SKVF12L22 is a genuine flat face female quick release coupling designed for high-performance hydraulic applications. This robust steel coupling features an M22x1.5 thread, a 12.5 mm nominal diameter, and is rated for a maximum working pressure of 350 bar. It incorporates a pressure eliminator, enabling easy connection even under residual pressure, and ensures reliable operation in demanding agricultural and industrial machinery. Compliant with ISO 16028 standards, it offers a maximum flow rate of 80 L/min.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
DNP
Connection Type
Female
Face Type
Flat face
Hex Size (mm)
30
ISO Standard
ISO 16028
Length (mm)
75
Material
Steel
Max Flow Rate (L/min)
80
Max Outer Diameter (mm)
40
Max Working Pressure (bar)
350
Nominal Diameter (mm)
12.5
Pressure Eliminator
True
Series
SKV
Thread Size
M22x1.5
Weight (kg)
0.28
Quality
OEM Quality
Manufacturer
DNP

Similar items you might like

  • Kramp

    Kramp - SKVF16C12 - Quick Release Coupling Female 5/8" - 3/4" BSP

    Kramp

    €22.67

  • Kramp

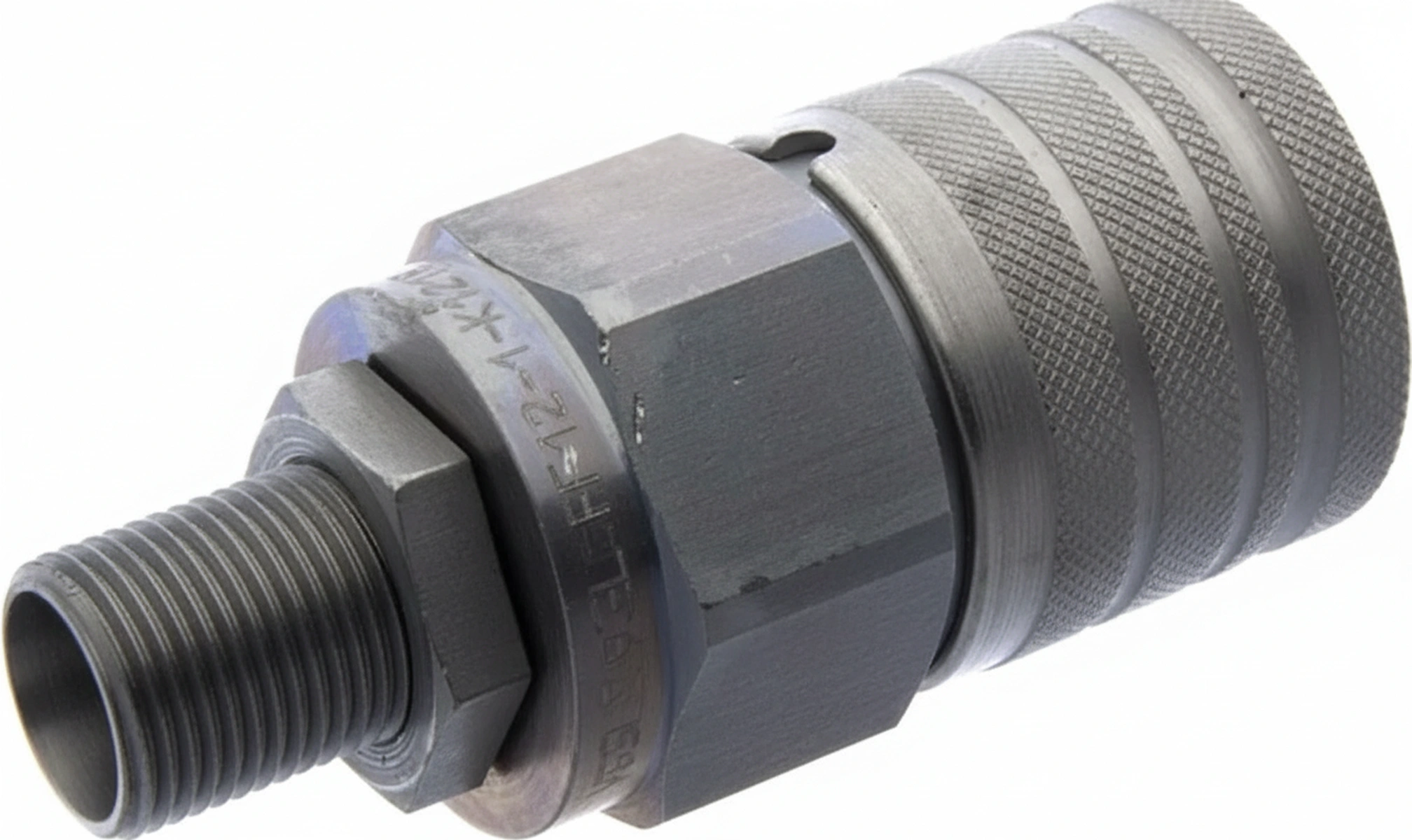

    Kramp - SKVF12N18 - QR Coupling Female
