Kramp - SOV32MS18NC - Kramp 3/2-way Solenoid valve NC-1/8" - SOV32MS18NC, 8716106824618

OEM Quality

SKU: kramp-sov32ms18nc

Kramp - SOV32MS18NC - Kramp 3/2-way Solenoid valve NC-1/8" - SOV32MS18NC, 8716106824618

€61.18€52.29 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€61.18

Brand
Kramp
Part Numbers
SOV32MS18NC; 8716106824618
Type
Spool valve, spring return
Unit
Each

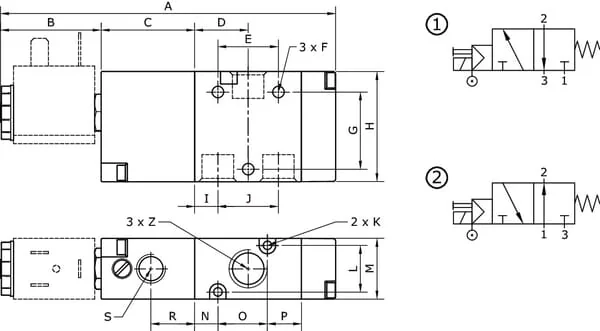

SBore
M 5
Bore F
4.2 mm
Type 2
NC
ALength A
110.5 mm
Actuation
Electromagnetic / pneumatically
BLength B
36.2 mm
CLength C
34 mm
DLength D
14.9 mm
HHeight H
32 mm
MHeight M
22 mm
Connection
G 1/8
ZConnection
G 1/8 BSP
Installation
Free
Mounting type
Through-bore
KBore diameter
3.1 mm
Manual override
Yes
Material housing
Anodized aluminium, coated
Switching symbol
1
Nominal flow range
740 l/min
Pilot pressure range
2 - 10 BAR
Max. working pressure
10 BAR
RHole center distance
17.2 mm
Working pressure min.
0 BAR
GDistance center to center
23 mm
EDistance for locating holes
15.5 mm
Distance center hole to right side
6.3 mm
ODistance center hole to left side
13 mm
JDistance mounting holes center to center
17,2 mm
Distance mounting holes center to center long side
10.5 mm
Distance mounting holes center to center short side
6.3 mm
Distance mounting holes short side center to center
16.9 mm
EAN
8716106824618
Manufacturer
Kramp
