Kramp-sov52ms14 - Solenoid valve 1/4" 5/2-way

OEM Quality

SKU: kramp-sov52ms14

Kramp-sov52ms14 - Solenoid valve 1/4" 5/2-way

€51.23

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€51.23

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,632 genuine Kramp spare parts.

Brand
Kramp
Part Numbers
sov52ms14
Type
Spool valve, spring return
Unit
Each

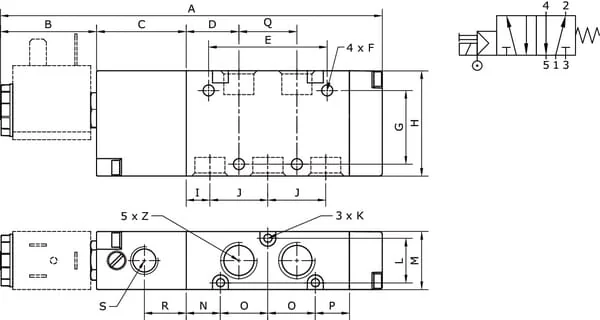

SBore
G 1/8
Bore F
4.2 mm
ALength A
144.6 mm
Actuation
Electromagnetic / pneumatically
BLength B
36.2 mm
CLength C
34 mm
DLength D
20 mm
HHeight H
40 mm
MHeight M
22 mm
Connection
G 1/4
ZConnection
G 1/4 BSP
Installation
Free
Mounting type
Through-bore
KBore diameter
3.1 mm
Manual override
Yes
Material housing
Anodized aluminium, coated
Nominal flow range
1200 l/min
Pilot pressure range
1 - 10 BAR
Max. working pressure
10 BAR
RHole center distance
15.9 mm
Working pressure min.
0 BAR
GDistance center to center
28 mm
EDistance for locating holes
45 mm
QCenter to center pressure side
22 mm
Distance center hole to right side
13 mm
ODistance center hole to left side
18 mm
JDistance mounting holes center to center
22 mm
Distance mounting holes center to center long side
13 mm
Distance mounting holes center to center short side
9 mm
Distance mounting holes short side center to center
16.9 mm
EAN
8716106824687
Manufacturer
Kramp
