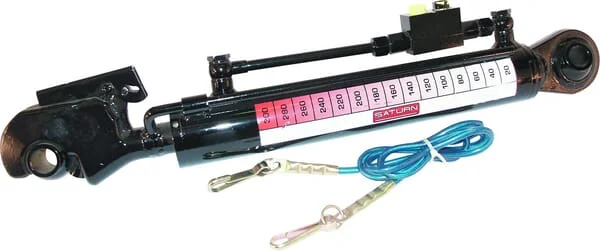

Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2
Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2
Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2
Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2
Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2

Kramp - Hydraulic Toplink TCVHN, 546mm Cat.2

€229.33

(Excl. VAT)

Price

(Excl. VAT)

€229.33

Product Description

The Kramp TCVHN356323022 is a high-quality genuine Kramp hydraulic toplink, designed for robust performance in agricultural applications. This Cat. 2 toplink features a closed length of 546mm, an open length of 786mm, and a stroke of 240mm. It is constructed with a 35mm rod diameter and a 63mm cylinder diameter, capable of handling a maximum working pressure of 200 bar. The toplink includes an M30 x 1.5 thread and a ball joint connection, with a 3/8 inch connection thread for hydraulic lines. Made from durable steel, it has an oil volume of 0.26 liters and weighs 8.3 kg.
Kramp
Kramp Groep, founded in 1951 by Johan Kramp in Varsseveld, Netherlands, is a leading European wholesaler of spare parts and accessories for the agricultural, forestry, and garden sectors. Headquartered in Varsseveld, the company has grown significantly over the decades, establishing a vast distribution network across Europe. Kramp offers an extensive and diverse product range, serving as a one-stop shop for dealers and workshops. Their catalog includes parts for tractors, implements, and various agricultural machines, encompassing everything from hydraulic components and engine parts to lighting and workshop supplies. The company focuses on providing high availability and efficient logistics to support its customers. At Partao, you can find a wide array of genuine Kramp spare parts. Our catalog includes Other Electrical Components, V-Belts, Other Merchandise & Gifts, Other Wear Parts, and Hoses & Fittings. Over 86,560 genuine Kramp spare parts are available at Partao. Kramp's strength lies in its comprehensive product offering and efficient supply chain, making it a crucial partner for agricultural businesses throughout Europe. The company's commitment to fast delivery and broad product availability helps farmers and mechanics maintain their machinery with minimal downtime, ensuring operations run smoothly.

Product Details

Brand
Kramp
Part Numbers
tcvhn356323022
Unit
Each
Colour
Black
Stroke
230 mm
Details

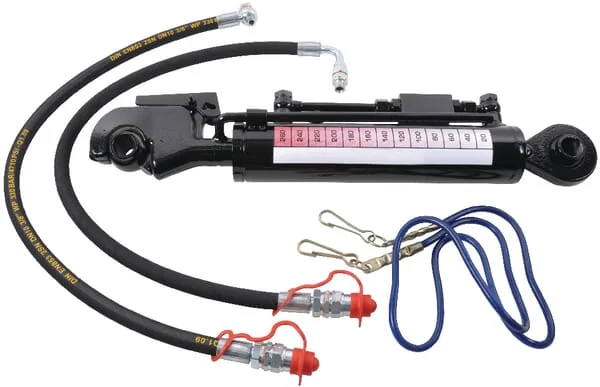

With hose and adaptors Length indicator Equipped with a controlled check valve
Benefits
Ready to use Settings can be easily read Maintains position
Properties
Maximum radial load: 10% of the axial force
Consists of
Ball Control cable Hose kit incl. adaptors, length: 900 mm Quick-release couplings Dust caps
Min. length
546 mm
AMax. length
776 mm
Rod diameter
35 mm
Rod material
Steel 20MnV6
Technical info
Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Purity of the medium : ISO 4406 22/20/17 or NAS 9
RAL colour code
9005
Nominal pressure
200 BAR
Cylinder material
Steel ST52
EOutside diameter
73 mm
Max. piston speed
0,1 m/s
Max. working pressure
250 BAR
Rod surface treatment
Chromated
Cylinder bore diameter
63 mm
Max. working temperature
85 °C
Min. working temperature
-25 °C
DOil connections distance
269 mm
Max. pull capacity at 200 bar
5,8 t
Max. push capacity at 200 bar
6,2 t
Mounting type - rod connection
Hook
Top link category - rod connection
2
Mounting type - cylinder connection
Bearing
Mounting thread type - rod connection
BSP
Mounting hole diameter - rod connection
25,7 mm
Top link category - cylinder connection
2
Mounting thread diameter - rod connection
3/8 Inch
Mounting thread type - cylinder connection
BSP
Mounting hole diameter - cylinder connection
25,7 mm
CMounting thread diameter - cylinder connection
3/8 Inch
EAN
8716106177226
Manufacturer
Kramp
