Home
Attachments & Lift
Hitches & Linkage Parts
Top Links

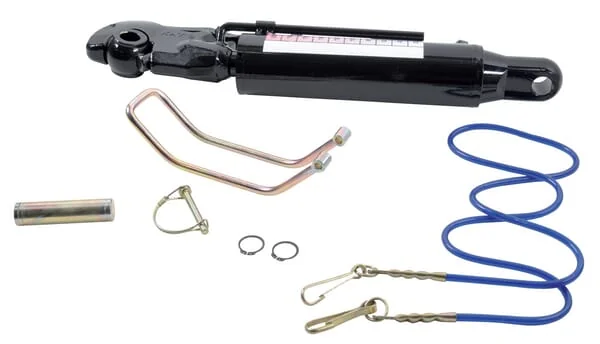

Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch
Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch
Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch
Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch
Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch

Kramp - TCVNA3563230K2 - Kramp Hydraulic Top Link Clevis End+Latch

€309.47

(Excl. VAT)

Price

(Excl. VAT)

€309.47

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

Product Details

Brand
Kramp
Unit
Each
Colour
Black
Stroke
230 mm
Details
Length indicator Equipped with a controlled check valve
Benefits
Ready to use Settings can be easily read Maintains position
Properties
Maximum radial load: 10% of the axial force
Consists of
Ball Control cable Bracket Fork bolt
Min. length
555 mm
Rod diameter
35 mm
Rod material
Steel 20MnV6
Technical info
Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Purity of the medium : ISO 4406 22/20/17 or NAS 9
RAL colour code
9005
Nominal pressure
200 BAR
Application range
Bore 63 suitable for tractors up to 74 kW Bore 70 suitable for tractors up to 135 kW Bore 90 suitable for tractors up to 206 kW
Cylinder material
Steel ST52
EOutside diameter
73 mm
Max. piston speed
0,1 m/s
Max. working pressure
250 BAR
Rod surface treatment
Chromated
Cylinder bore diameter
63 mm
Max. working temperature
85 °C
Min. working temperature
-25 °C
Mounting type - rod connection
Hook
Top link category - rod connection
2
Mounting type - cylinder connection
Knuckle
Mounting hole diameter - rod connection
20 mm
Top link category - cylinder connection
2
Mounting hole diameter - cylinder connection
20 mm
CMounting thread diameter - cylinder connection
3/8 Inch
Manufacturer
Kramp
