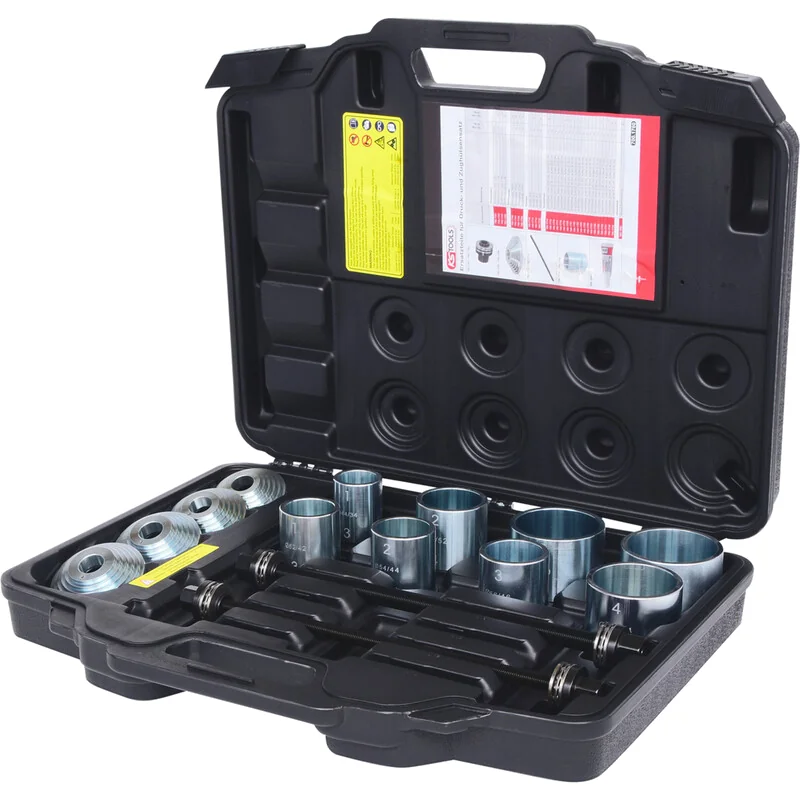

KS Tools - 7001760 - Press And Pull Sleeve Kit, 20pcs

SKU: ks-tools-7001760

KS Tools - 7001760 - Press And Pull Sleeve Kit, 20pcs

€841.28€719.04 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€841.28

Brand
ks-tools
Content
2x pressure nut, M12, 2x pressure nut, M16, 1x stepped plate, #1, 1x stepped plate, #2, 1x stepped plate, #3, 1x stepped plate, #4, 1x spindle, M12, 350 mm, 1x spindle, M16, 350 mm, 1x pressure sleeve, inner-Ø 34 mm, outer-Ø 44 mm, 1x pressure sleeve, inner-Ø 42 mm, outer-Ø 52 mm, 1x pressure sleeve, inner-Ø 44 mm, outer-Ø 54 mm, 1x pressure sleeve, inner-Ø 46 mm, outer-Ø 56 mm, 1x pressure sleeve, inner-Ø 52 mm, outer-Ø 62 mm, 1x pressure sleeve, inner-Ø 64 mm, outer-Ø 74 mm, 1x pressure sleeve, inner-Ø 70 mm, outer-Ø 80 mm, 1x pressure sleeve, inner-Ø 72 mm, outer-Ø 82 mm, 2x special thread grease, tube
Material
Special tool steel
Packaging
Plastic case, extra robust
Width (mm)
450
Height (mm)
130
Length (mm)
550
Maximum Torque (Nm)
Spindle M10x1.5 60, Spindle M12x1.5 100, Spindle M14x1.5 180, Spindle M16x1.5 250
Spindle Length (mm)
350
Spindle M10x1,5 (Nm)
60
Spindle M12x1,5 (Nm)
100
Spindle M14x1,5 (Nm)
180
Spindle M16x1,5 (Nm)
250
Pressure Sleeve Inner Diameter (mm)
34, 42, 44, 46, 52, 64, 70, 72
Pressure Sleeve Outer Diameter (mm)
44, 52, 54, 56, 62, 74, 80, 82
Maximum Permissible Torque M10x1.5 (Nm)
60
Maximum Permissible Torque M12x1.5 (Nm)
100
Maximum Permissible Torque M14x1.5 (Nm)
180
Maximum Permissible Torque M16x1.5 (Nm)
250
EAN
4042146378861
Manufacturer
ks-tools

This press and pull sleeve kit is used for the universal assembly and disassembly of various bearings, including silent bearings, hydromounts, bushings, ball bearings, and radial shaft seals, in cars, trucks, and municipal, agricultural, and forestry equipment. The set includes pressure nuts, step plates, spindles, pressure sleeves, and two tubes of special thread grease, and can be used with a workshop press or hollow piston cylinder, with a thrust bearing protecting against increased friction. It comes in a sturdy plastic case.
KS Tools
Ks-tools provides a range of hand tools and workshop equipment for agricultural machinery maintenance. The brand offers wrenches, sockets, and diagnostic tools suited for tractor and implement repairs. Its products are designed for durability and precision in farm and workshop environments. Shop more than 23,768 genuine Ks-tools spare parts.
