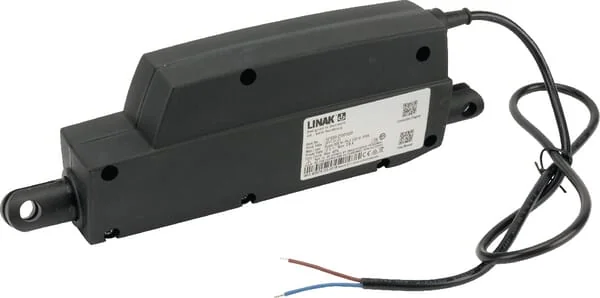

LINAK - LA12100021001220 - ACTUATOR 12V S=100

OEM Supplier

SKU: linak-la12100021001220

LINAK - LA12100021001220 - ACTUATOR 12V S=100

€184.67

(excl. VAT)
RRP:€207.51
Save €22.85
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€184.67

Non-adjustable built-in end stop switches Nonrotating piston rod eye Stroke length from 19 to 130mm Thrust from 200 N - 750 N depending on electro motor and spindle pitch Max. speed up to 40 mm/sec. depending on load and spindle pitch Consists of a high-quality plastic housing and a piston rod made of reinforced fibreglass Offers protection class IP66 Load cycle at 200N and 6mm pitch is max. 60% Load cycle at 300N and 4mm pitch is max. 40% Load cycle at 750N and 2mm pitch is max. 10%
Linak
Linak produces electric linear actuators and control systems for agricultural machinery, including tractor attachments and adjustable implements. The brand’s solutions enhance automation in tasks like bale handling and livestock feeding systems. Its products are recognized for reliability and integration with smart farming technologies. Shop more than 111 genuine Linak spare parts.

Brand
LINAK
Part Numbers
la12100021001220
Pros
Compact design, installation dimension 245mm to 355mm Easy installation Quiet operation, maximum 60 dB(A)
Unit
Each
Colour
Black
Stroke
100 mm
Current
4,6 A
Voltage
12 V
Duty cycle
40 %
Cable length
750 mm
Eye diameter
10,1 mm
On load speed
16 mm/s
Non load speed
27 mm/s
Max. pull force
300 N
Max. push force
300 N
Product details
Non-adjustable built-in end stop switches Nonrotating piston rod eye Stroke length from 19 to 130mm Thrust from 200 N - 750 N depending on electro motor and spindle pitch Max. speed up to 40 mm/sec. depending on load and spindle pitch Consists of a high-quality plastic housing and a piston rod made of reinforced fibreglass Offers protection class IP66 Load cycle at 200N and 6mm pitch is max. 60% Load cycle at 300N and 4mm pitch is max. 40% Load cycle at 750N and 2mm pitch is max. 10%
Insulation class
66
Long description
The LA12 linear actuator's small size and excellent performance make it a practical and cost-effective alternative to small-scale conventional hydraulic and pneumatic systems. The LA12 is ideal for applications requiring short linear movements.
Operating temperature
5-40 °C
Distance of mounting points
245 mm
Manufacturer
LINAK
