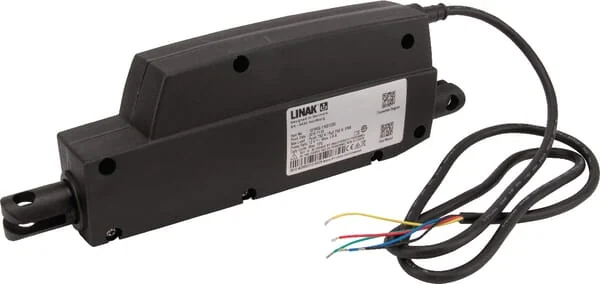

LINAK - LA121P0011001220 - Actuator 12V S=100
LINAK - LA121P0011001220 - Actuator 12V S=100
LINAK - LA121P0011001220 - Actuator 12V S=100
LINAK - LA121P0011001220 - Actuator 12V S=100
LINAK - LA121P0011001220 - Actuator 12V S=100

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

LINAK - LA121P0011001220 - Actuator 12V S=100

LINAK - LA121P0011001220 - Actuator 12V S=100

€228.52

(Excl. VAT)

Price

(Excl. VAT)

€228.52

Product Description

Non-adjustable built-in end stop switches Nonrotating piston rod eye Stroke length from 19 to 130mm Thrust from 200 N - 750 N depending on electro motor and spindle pitch Max. speed up to 40 mm/sec. depending on load and spindle pitch Consists of a high-quality plastic housing and a piston rod made of reinforced fibreglass Offers protection class IP66 Load cycle at 200N and 6mm pitch is max. 60% Load cycle at 300N and 4mm pitch is max. 40% Load cycle at 750N and 2mm pitch is max. 10%
Linak
Linak is a Danish company globally recognized as a leading manufacturer of electric linear actuator systems. Founded in 1907 by Christian Jensen, the company initially produced agricultural machinery. However, it was in 1976, under the leadership of Bent Jensen, that Linak shifted its focus to electric linear actuators, a move that defined its modern identity. Headquartered in Nordborg, Denmark, Linak remains a privately owned company. The brand's core expertise lies in developing and manufacturing innovative electric linear actuators, control systems, and related accessories. These solutions are crucial for creating movement in various applications, including healthcare, office furniture, industrial automation, and agricultural machinery. Linak actuators are known for their precision, reliability, and ability to integrate into complex systems, enabling automation and ergonomic adjustments in equipment like tractor attachments, adjustable implements, and livestock feeding systems. Partao offers a specialized range of Linak spare parts, including Control Consoles, Control Modules, Hydraulic Cylinders, Other Electrical Components, and Other Hydraulics Parts. Over 111 genuine Linak spare parts are available at Partao. Manufacturers and operators in the agricultural sector value Linak components for their contribution to smart farming technologies and enhanced operational efficiency. The brand's commitment to robust and intelligent actuator solutions ensures that machinery equipped with its systems benefits from precise control and reliable performance, even in demanding farm environments.

Product Details

Brand
LINAK
Pros
Compact design, installation dimension 245mm to 355mm Easy installation Quiet operation, maximum 60 dB(A)
Unit
Each
Colour
Black
Stroke
100 mm
Current
4,6 A
Voltage
12 V
Duty cycle
10 %
Cable length
930 mm
Eye diameter
10,1 mm
On load speed
5 mm/s
Non load speed
14 mm/s
Max. pull force
750 N
Max. push force
750 N
Insulation class
66
Operating temperature
5-40 °C
Distance of mounting points
245 mm
Manufacturer
LINAK
