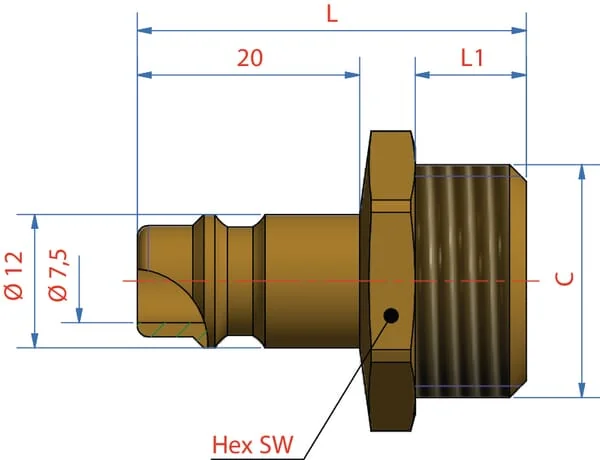

Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread
Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread
Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread
Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread
Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping on orders over €60

Pay Securely with

Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread

Lüdecke - ES1815NA - Male Connector with M18x1.5mm Male Thread

€3.57

(Excl. VAT)

Price

(Excl. VAT)

€3.57

Product Details

Brand
Lüdecke
Unit
Each
Shape
Straight - 2 connection sides
Weight
36 g
Material
Brass
LTotal length
34 mm
Connection 2, type
Thread
Designed for medium
Air
Connection no 1 type
Quick coupling
Interchangeable with
Cejn 320 Rectus 26 JWL 520/530 Prevost ESC/ESG Festo
Max working pressure
35 BAR
Max working temperature
100 °C
Connection no 1 diameter
7,2 mm
Min. working temperature
-20 °C
Connection 2, thread type
Metric
Connection 2, wrench size
24.0 mm
Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M18
Connection no 1 thread length
10 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Manufacturer
Lüdecke
