Lüdecke - ESM14A - Quick Release Coupling 1/4" BSP Male Thread
Lüdecke - ESM14A - Quick Release Coupling 1/4" BSP Male Thread
Lüdecke - ESM14A - Quick Release Coupling 1/4" BSP Male Thread
Lüdecke - ESM14A - Quick Release Coupling 1/4" BSP Male Thread

In stock - ready to ship

Order now for delivery between 21 April and 24 April
Free shipping on orders over €60

Pay Securely with

Lüdecke - ESM14A - Quick Release Coupling 1/4" BSP Male Thread

Lüdecke - ESM14A - Quick Release Coupling 1/4" BSP Male Thread

€5.54

(Excl. VAT)

Price

(Excl. VAT)

€5.54

Product Description

Body, sleeve: Brass MS58 Springs, retaining ring: Stainless steel 1.4310 Balls: Stainless Steel 1.3541 Seals: NBR
Lüdecke

Product Details

Brand
Lüdecke
Unit
Each
Shape
Straight - 2 connection sides
Weight
36 g
Material
Brass
ISO standard
228

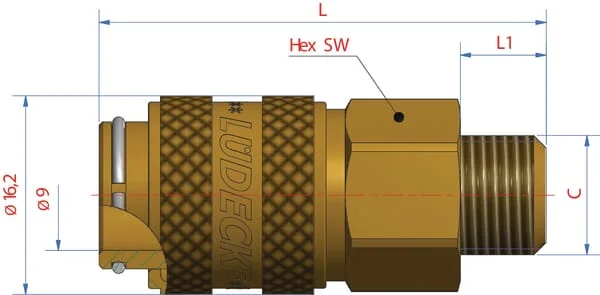

LTotal length
38 mm
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Min. working temperature
-20 °C
Connection 2, thread type
BSPP
Connectable under pressure
Yes
SWConnection 2, wrench size
17.0 mm
L1Connection 2, thread length
9 mm
CConnection 2, thread diameter
1/4 Inch
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
Manufacturer
Lüdecke
