Transmission, Drivetrain & Brakes

Pressure Plates

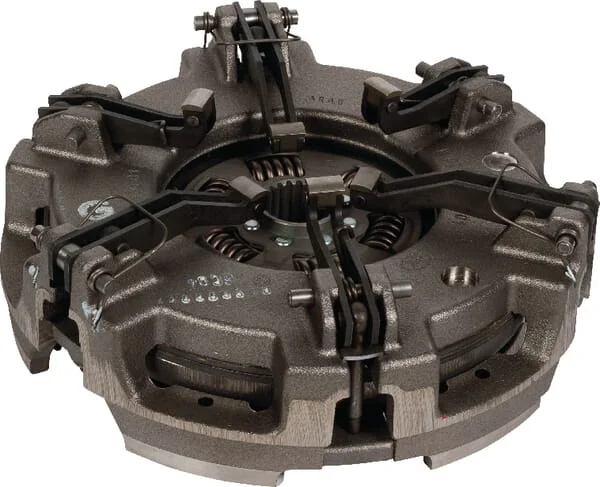

LuK - 230003310 - Clutch Covers Double Tgu6

LuK - 230003310 - Clutch Covers Double Tgu6

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

LuK - 230003310 - Clutch Covers Double Tgu6

LuK - 230003310 - Clutch Covers Double Tgu6

€467.31

(Excl. VAT)

Price

(Excl. VAT)

€467.31

Number of products

LuK

Luk is a manufacturer of clutch systems and drivetrain components for agricultural machinery. The brand is recognized for high-performance solutions that ensure smooth power transmission in tractors. Its products are designed to withstand the rigorous demands of farming and forestry. Shop more than 622 genuine Luk spare parts.

Product Details

Brand

Type

TGU6

Unit

Each

Levers

Yes

OEM-Number

82224600

Suitable for

Valmet

LuK type code

TGU 6

Technical info

SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers

Number of holes

12

Outside diameter

300 mm280 mm

Number of springs

1

Manufacturer

LuK
