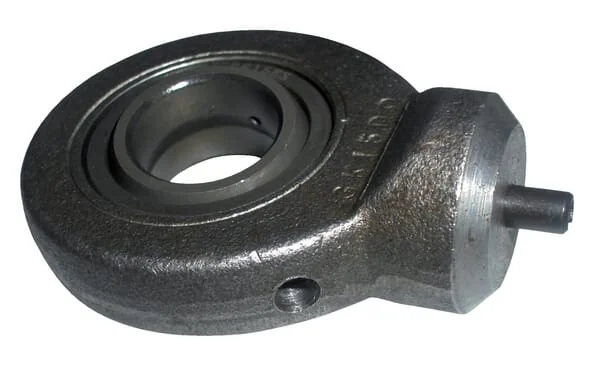

Mac Power - GK16DO - Weld-On End GK 16 DO

Mac Power - GK16DO - Weld-On End GK 16 DO

€6.63

(Excl. VAT)

Price

(Excl. VAT)

€6.63

Number of products

Product Details

Brand

Unit

Each

Material

Forged steel

Properties

Requires maintenance Cylindrical welded end Centring pin with 45° weld on strip on the end Lubricated connection steel/steel

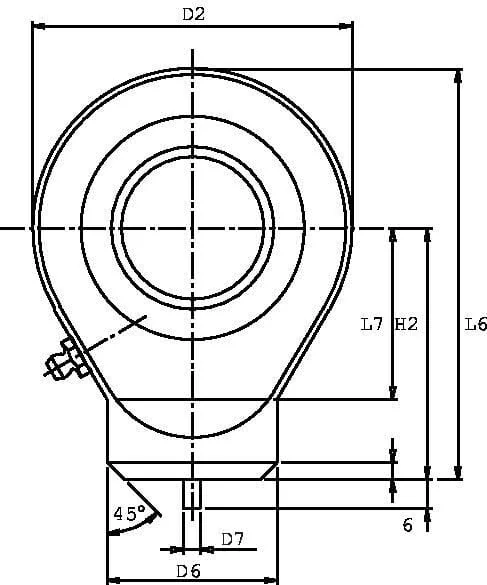

BHole length

14 mm

ßEdge angle

10 °

L6Total height

58 mm

Shaft diameter

24 mm

dHole diameter

16 mm

Application range

Hydraulic cylinder

D7Center pin diameter

4 mm

DBearing outside diameter

30 mm

C1Head width (hole length)

11 mm

L7Shaft to center distance

23 mm

D1Outside diameter of inner ring

20,7 mm

H2Hole centre to bottom distance

35 mm

Manufacturer
