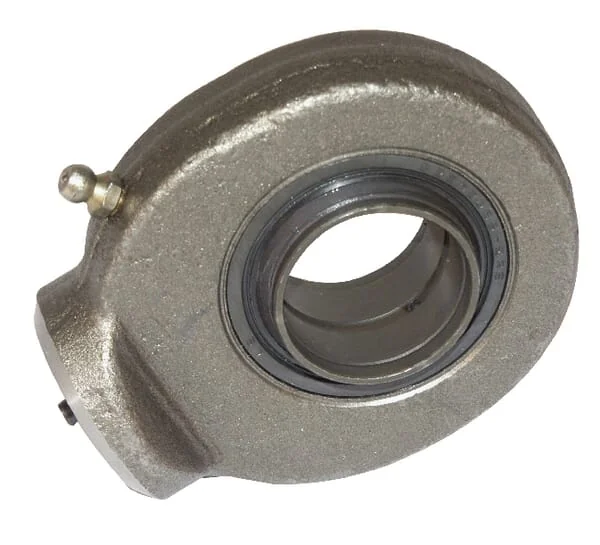

Mac Power - GK40HO2RS - Rod End

Mac Power - GK40HO2RS - Rod End

Mac Power - GK40HO2RS - Rod End

Mac Power - GK40HO2RS - Rod End

Mac Power - GK40HO2RS - Rod End

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Mac Power - GK40HO2RS - Rod End

Mac Power - GK40HO2RS - Rod End

€19.74

(Excl. VAT)

Price

(Excl. VAT)

€19.74

Number of products

Product Description

Application: Hydraulic cylinder Properties: Sealed on both sides Requires maintenance Cylindrical welded end Centring pin with 45° weld on strip on the end Lubricated connection: steel/steel

Mac Power

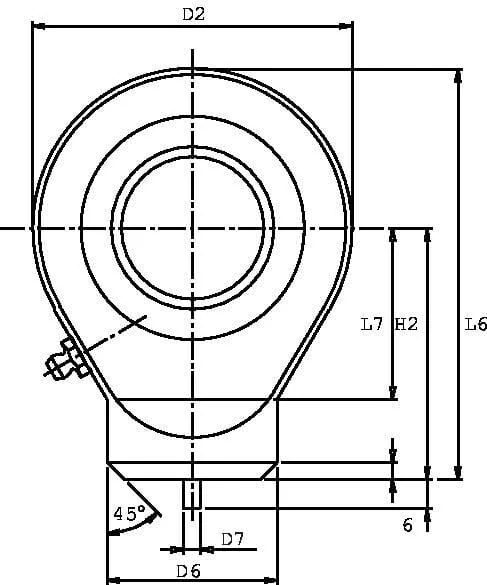

Product Details

Brand

Unit

Each

Material

Steel ST52 Forged steel

BHole length

38 mm

Total length

115 mm

ßEdge angle

6 °

L6Total height

115 mm

Shaft diameter

52 mm

dHole diameter

40 mm

D7Center pin diameter

4 mm

Head outside diameter

62 mm

C1Head width (hole length)

23 mm

L7Shaft to center distance

48 mm

Distance basis center shaft

69 mm

D1Outside diameter of inner ring

45 mm

H2Hole centre to bottom distance

69 mm

Manufacturer

Mac Power
