Mahle - MG372 - Alternator

OEM Supplier

SKU: mahle-mg372

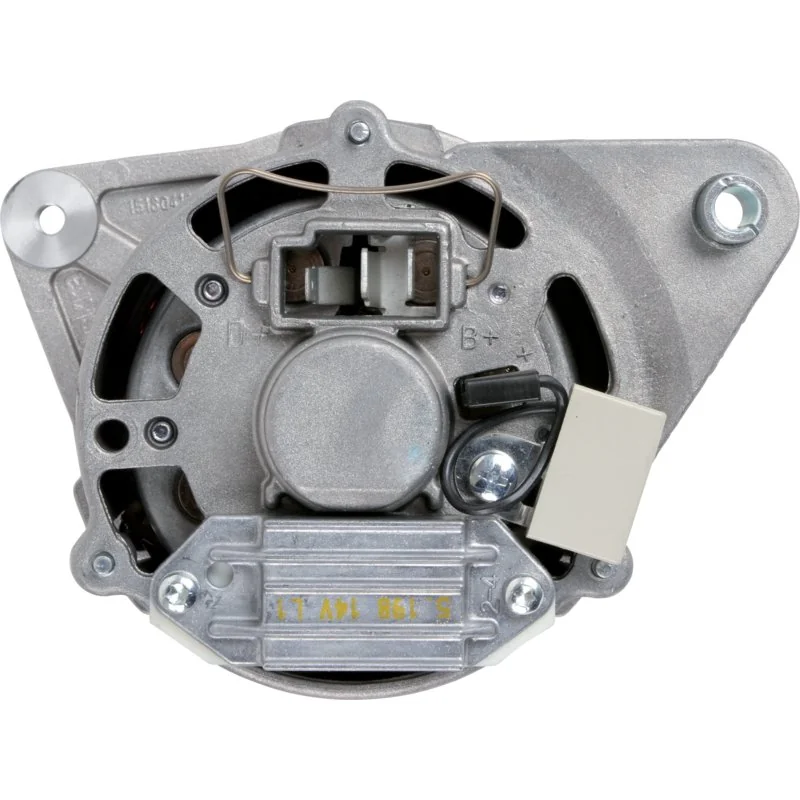

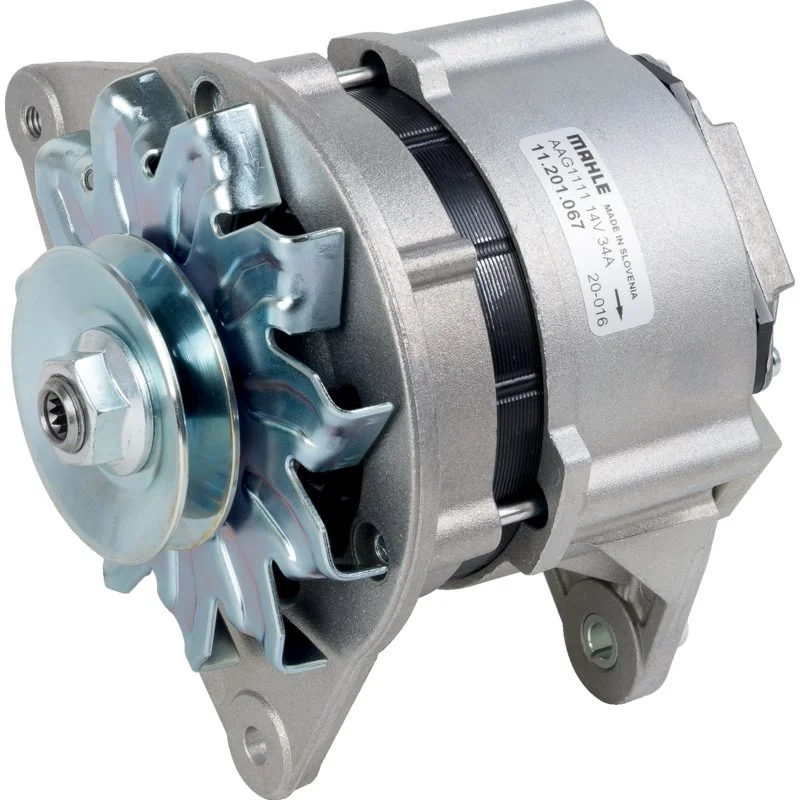

Mahle - MG372 - Alternator

€150.61€128.73 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€150.61

IMPORTANT NOTE! Before all work on electrical components, these must be de-energized. This means: First disconnect the ground cable (-) of the battery, then disconnect the positive cable (+). The alternator (generator) shaft must always be fixed with a suitable counter-holder (hexagon socket or multi-tooth) and the pulley nut tightened with a torque wrench (do not use an impact wrench) according to specifications (more details in the assembly information). For some pulleys, it is necessary to add shims to properly press the bearing into its seat. PLEASE NOTE THE ASSEMBLY INSTRUCTIONS! Tightening torque: M16 x 1,5 95Nm +/- 5Nm. M27 x 1,5 152Nm +/- 17,5Nm
Mahle
Mahle develops filtration and engine components for agricultural machinery, including air filters, oil filters, and cooling systems. The brand's products enhance the performance and longevity of tractor and harvester engines. Its solutions are widely used in precision farming and heavy-duty equipment maintenance. Shop more than 805 genuine Mahle spare parts.

Brand
mahle
Type
2
Angle (°)
L60 °
Current (A)
34
Height (mm)
170
Length (mm)
80
Radius (mm)
83
Voltage (V)
14
V-Belt Width
9.7 mm
W-Connection
nein
Max Width (mm)
140
Inner Diameter (mm)
8.2
Outer Diameter (mm)
110
Effective Diameter (mm)
62
Manufacturer
mahle
