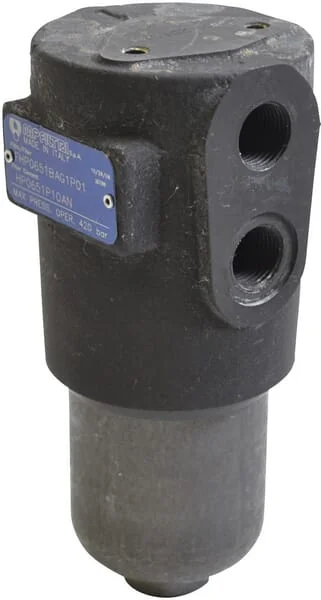

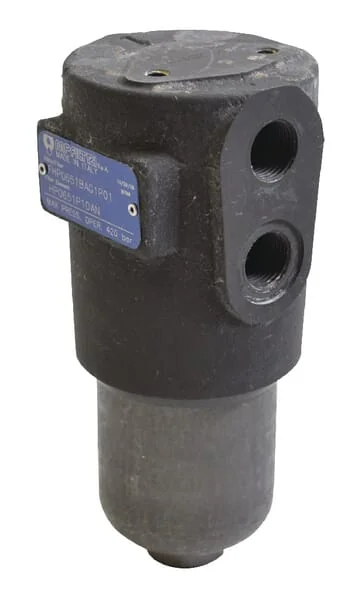

MP Filtri - FHP0652A10 - Pressure Filter Fhp065/2-B-08-A10 1/2

SKU: mp-filtri-fhp0652a10

MP Filtri - FHP0652A10 - Pressure Filter Fhp065/2-B-08-A10 1/2

€236.11€201.80 (Excl. VAT)

RRP:€299.00
Save €62.88

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€236.11

Pros
Can be placed in any position through pipe installation
Unit
Each
Bypass
Yes
Height
227 mm
Length
221 mm
Medium
Hydraulic oil
Includes
Filter comes standard without indicator plug
Sensor port
Yes
Filter finess
10 µm
Max flow rate
68 l/min
Min flow rate
60 l/min
Filtration level
Absolute
Housing material
Steel
Outside diameter
85 mm
Pressure collapse
20 BAR
Filtration material
Glass fibre
Max working pressure
420 BAR
Max working temperature
110 °C
Min working temperature
-25 °C
Sensor port thread type
G
Inlet port flange diameter
100 mm
Inlet port thread diameter
1/2 Inch
Outlet port thread diameter
1/2 Inch
Sensor port thread diameter
1/2 Inch
Manufacturer

Suitable for mineral oil Maximum pressure difference across element 20 bar (N series) or 210 bar (S series) Filtering from the outside in Maximum operating pressure 420 bar Burst pressure 1260 bar Temperature -25°C to +110°C Bypass opening pressure: 6 bar +-10% Flow rate depends on build size and filter choice Filter elements available in Fibreglass (A) or Metal (M) Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm)
MP Filtri
MP Filtri was founded in 1964 in Milan, Italy, and has grown to become a global leader in hydraulic filtration. Headquartered in Pessano con Bornago, Italy, the company remains an independent entity, dedicated to developing innovative solutions for fluid power systems. Its commitment to research and development has positioned it at the forefront of filtration technology. The company specializes in a comprehensive range of hydraulic filters, including pressure filters, return filters, suction filters, and in-line filters. MP Filtri also offers a variety of accessories such as level gauges, filler breathers, and contamination control products. These components are crucial for maintaining the cleanliness and efficiency of hydraulic systems in diverse applications, from industrial machinery to mobile equipment. At Partao, you can find a wide selection of MP Filtri spare parts, including Hydraulic Filters, Air Filters, Bolts & Fasteners, Brackets & Supports, and Engine Gaskets. Equipment operators across various sectors rely on MP Filtri for robust and effective filtration solutions. The brand's products are particularly valued in agricultural and construction machinery for their ability to protect sensitive hydraulic components from wear and contamination, ensuring reliable performance and extended service life in demanding environments. Shop more than 932 genuine MP Filtri spare parts.
