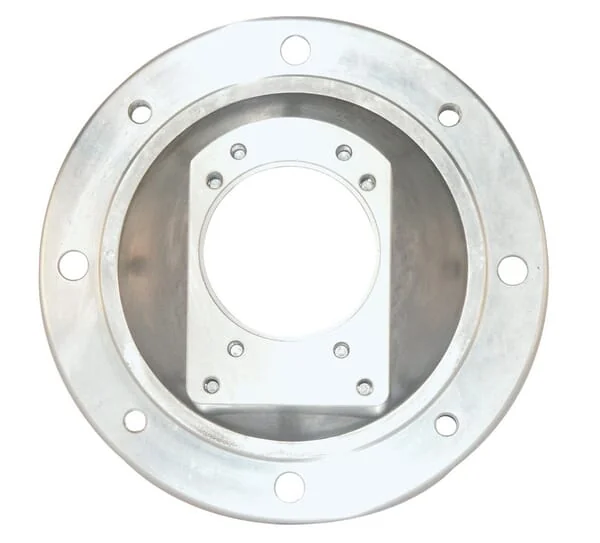

MP Filtri - L3253 - Bell Housing Gr-3 - 250mm
MP Filtri - L3253 - Bell Housing Gr-3 - 250mm
MP Filtri - L3253 - Bell Housing Gr-3 - 250mm
MP Filtri - L3253 - Bell Housing Gr-3 - 250mm
MP Filtri - L3253 - Bell Housing Gr-3 - 250mm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

MP Filtri - L3253 - Bell Housing Gr-3 - 250mm

MP Filtri - L3253 - Bell Housing Gr-3 - 250mm

€58.62

(Excl. VAT)

Price

(Excl. VAT)

€58.62

Product Description

Standard pump holders for gear pumps group 1,2,3, type L For gear pumps with rectangular flange and tapered shaft (European standard) For engines with a B5 flange Assortment : 0.22 to 22kW Cast aluminium Type 4E is equipped with a centring washer. The pump and motor combination is often mounted horizontally on top of the tank for convenient maintenance. Disassembling the pump is generally possible without removing the motor, the coupling half that is mounted on the pump fits through the hole of the bell housing. 4S type is designed without centring washer. The pump and motor combination is often mounted to the tank vertically, meaning that the pump is immersed in the reservoir In combination with elastic couplings type GE Temperature range : -30 °C to +80 °C
MP Filtri
Mp-filtri produces hydraulic and fuel filtration systems for agricultural and construction machinery. The brand offers filters, separators, and breathers designed to protect engines and hydraulic systems from contamination. Its products are used in tractors, harvesters, and other heavy-duty equipment. Shop more than 628 genuine Mp-filtri spare parts.

Product Details

Brand
MP Filtri
Pros
No alignment of pump and motor required
Type
4E
Unit
Each
Flange
B5
Material
Die-cast aluminium
Extra info
Type 4E is equipped with a centring washer. The pump and motor combination is often mounted to the tank or machine horizontally for better and convenient maintenance. Disassembling the pump is generally possible without removing the motor, the coupling half that is mounted on the pump goes through the hole of the bell housing. Show more
Motor size
IEC100, IEC112
Power max.
4 kW
Pump group
Gr 3; E (98 x 128)
Total width
126 mm
Designed for
The standard lantern rings are made of die-cast aluminium. The lantern rings are applicable for the pumps of the SATURN range and are suitable for powers between 0.25 and 22 kW. For motors with a B5 flange.
Engine power
4 kW2.2 kW
Flange width
22 mm

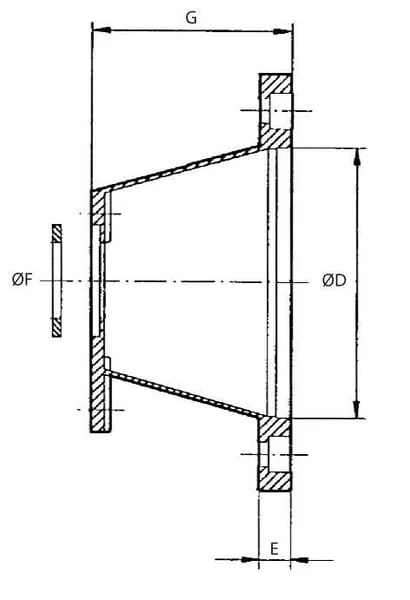

Lock diameter
50.8 mm
DInside diameter
180 mm
AOutside diameter
250 mm
Master model code
LMG251MFS3004E
BDiameter bolt circle
215 mm
Diameter of mounting hole
187 mm
HDistance mounting holes center to center long side
128.00 mm
IDistance mounting holes center to center short side
98.50 mm
Manufacturer
MP Filtri
