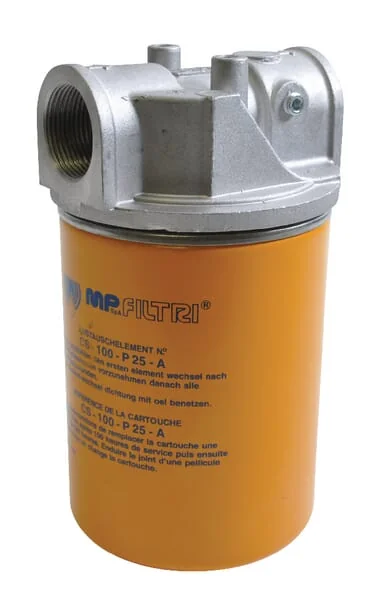

MP Filtri - MPS100SP10 - Suction Filter

SKU: mp-filtri-mps100sp10

MP Filtri - MPS100SP10 - Suction Filter

€60.96

(excl. VAT)
RRP:€100.94
Save €39.98

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€60.96

Application: Suction filter Mounting: Pipe mounting, filter in vertical position In combination with filter elements type CS Operating pressure: Max. 12 bar Material: Aluminium Medium: Suitable for mineral oil Temperature: -25°C to +110°C Filtering: From the outside in Bypass opening pressure suction filter : 0.3 bar Flow rate depends on build size and filter choice. Filter elements available in fibreglass (A), paper (P) or metal (M) Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm)
MP Filtri
MP Filtri was founded in 1964 in Milan, Italy, and has grown to become a global leader in hydraulic filtration. Headquartered in Pessano con Bornago, Italy, the company remains an independent entity, dedicated to developing innovative solutions for fluid power systems. Its commitment to research and development has positioned it at the forefront of filtration technology. The company specializes in a comprehensive range of hydraulic filters, including pressure filters, return filters, suction filters, and in-line filters. MP Filtri also offers a variety of accessories such as level gauges, filler breathers, and contamination control products. These components are crucial for maintaining the cleanliness and efficiency of hydraulic systems in diverse applications, from industrial machinery to mobile equipment. At Partao, you can find a wide selection of MP Filtri spare parts, including Hydraulic Filters, Air Filters, Bolts & Fasteners, Brackets & Supports, and Engine Gaskets. Over 628 genuine MP Filtri spare parts are available at Partao. Equipment operators across various sectors rely on MP Filtri for robust and effective filtration solutions. The brand's products are particularly valued in agricultural and construction machinery for their ability to protect sensitive hydraulic components from wear and contamination, ensuring reliable performance and extended service life in demanding environments.

Pros
Ideal in places where there is little space around the oil reservoir for servicing. Good alternative to a built-in filter in terms of price. Easy to retrofit into a system.
Unit
Each
Bypass
Yes
Height
241 mm
Medium
Hydraulic oil
Filter finess
10 µm
Min flow rate
35 l/min
Filtration level
Nominal
Outside diameter
129 mm
Max working temperature
100 °C
Min working temperature
-25 °C
Outlet port thread diameter
1-1/4 Inch
Manufacturer
MP Filtri
