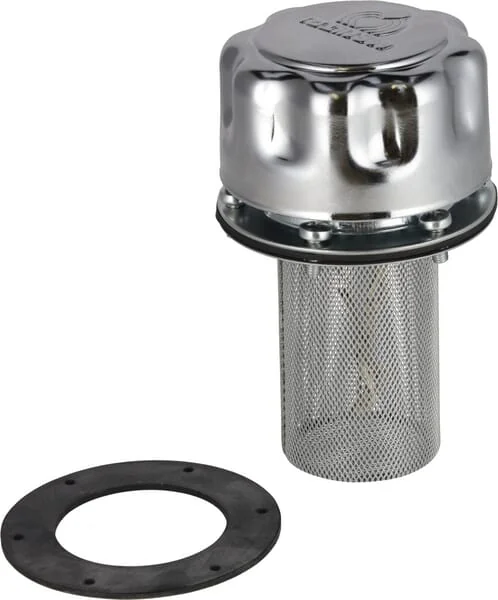

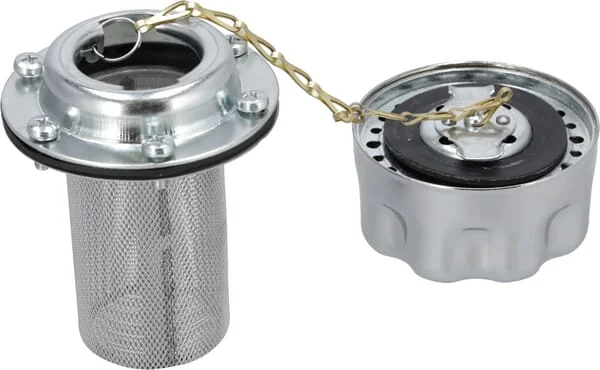

MP Filtri - TA80B10A201P01 - Filling Cap Ta80 With Filter

SKU: mp-filtri-ta80b10a201p01

MP Filtri - TA80B10A201P01 - Filling Cap Ta80 With Filter

€32.44

(excl. VAT)
RRP:€45.68
Save €13.24

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€32.44

The TA series of filling plugs consists of compact metal air vents and filter caps designed to protect tanks from the entrapment of solid contaminants in air and to simplify liquid filling during commissioning and maintenance. These components are mounted directly on the tank and their robust construction makes them suitable for use in demanding heavy-duty applications. Show more
MP Filtri
MP Filtri was founded in 1964 in Milan, Italy, and has grown to become a global leader in hydraulic filtration. Headquartered in Pessano con Bornago, Italy, the company remains an independent entity, dedicated to developing innovative solutions for fluid power systems. Its commitment to research and development has positioned it at the forefront of filtration technology. The company specializes in a comprehensive range of hydraulic filters, including pressure filters, return filters, suction filters, and in-line filters. MP Filtri also offers a variety of accessories such as level gauges, filler breathers, and contamination control products. These components are crucial for maintaining the cleanliness and efficiency of hydraulic systems in diverse applications, from industrial machinery to mobile equipment. At Partao, you can find a wide selection of MP Filtri spare parts, including Hydraulic Filters, Air Filters, Bolts & Fasteners, Brackets & Supports, and Engine Gaskets. Over 628 genuine MP Filtri spare parts are available at Partao. Equipment operators across various sectors rely on MP Filtri for robust and effective filtration solutions. The brand's products are particularly valued in agricultural and construction machinery for their ability to protect sensitive hydraulic components from wear and contamination, ensuring reliable performance and extended service life in demanding environments.

Type
Swivel plug
Unit
Each
Weight
330 g
CHeight
139 mm
Sealing
Yes
Includes
Filler cap Bayonet latch 2 gaskets Filler sieve
Material
Steel
Thread type
Metric
BHead height
61 mm
Wall thickness
4 mm
Working length
80 mm
Number of holes
6
Thread diameter
5 mm
DInside diameter
50 mm
Sealing material
Nitrile rubber [NBR]
AOutside diameter
80 mm
Surface treatment
Chromium-plated
EMounting diameter
83 mm
Connection no 1 type
Thread
Max working pressure
0,7 BAR
Max. working temperature
100 °C
Min. working temperature
-25 °C
Max. holes pitch circle diameter
73 mm
Min. holes pitch circle diameter
51 mm
Manufacturer
MP Filtri
