MZ - ARZO01000150933 - MZ Plate Valve 6" Without Outlet
MZ - ARZO01000150933 - MZ Plate Valve 6" Without Outlet
MZ - ARZO01000150933 - MZ Plate Valve 6" Without Outlet
MZ - ARZO01000150933 - MZ Plate Valve 6" Without Outlet

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

MZ - ARZO01000150933 - MZ Plate Valve 6" Without Outlet

MZ - ARZO01000150933 - MZ Plate Valve 6" Without Outlet

€612.79

(Excl. VAT)

Price

(Excl. VAT)

€612.79

MZ
Mz is a manufacturer of agricultural machinery, specializing in equipment for soil preparation and cultivation. The brand produces plows, harrows, and other tillage implements for efficient field work. Its products are designed for durability and performance in diverse soil conditions. Shop more than 592 genuine Mz spare parts.

Product Details

Brand
MZ
Equivalent OEM Part Numbers

Mz

ARZO01000150933
Fits

Mz

Vacuum Pumps
Unit
Each
Details
Attention! only instal in flow direction

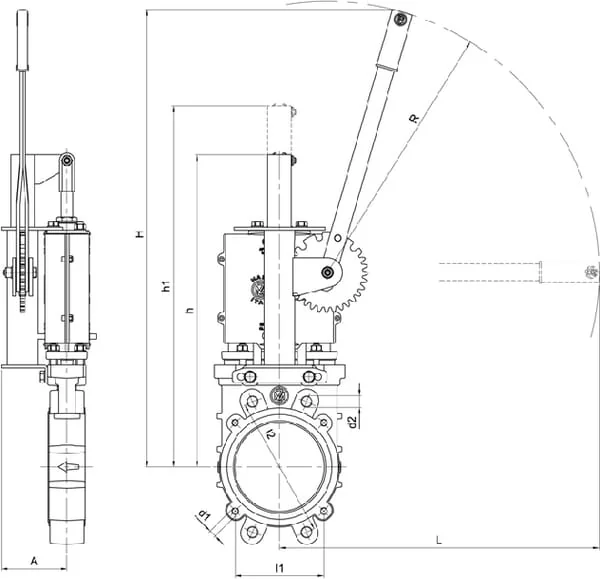

Properties
Painted cast iron housing with stainless steel gate valve and bolts Without discharge
HTotal height
780 mm
Max working pressure
10 BAR
Max medium temperature
80 °C
Min medium temperature
-15 °C
RLever length - long side
460 mm
ACentre to back end distance
111 mm
Flange mounting holes number
8
DPassage hole nominal diameter
6 Inch
l1Flange mounting bolts/holes distance
150 mm
d1Flange mounting bolts/holes thread diameter
M20
hPassage hole centre to top distance (closed)
535 mm
l2Flange mounting bolts/holes circle diameter
240 mm
h1Passage hole centre to top distance (opened)
700 mm
Manufacturer
MZ

Similar items you might like

  • MZ

    MZ - FG130112X3MS - MZ T-Piece F 1 1/2", Fittings, Brass Fittings, Threaded Fittings

    MZ

    €17.73

  • MZ

    MZ - FG130114MSL - Brass T-Piece 3xbi 1 1/4"

    MZ

    €14.45

  • MZ

    MZ - FG130134MS - MZ Brass T-Piece 3xbi 1"x3/4"x1", Fittings, Brass Fittings, Threaded Fittings

    MZ

    €11.79

  • MZ

    MZ - FG1303412MS - MZ Brass T-Piece 3xbi 3/4"x1/2"x3/4", Fittings, Brass Fittings, Threaded Fittings

    MZ

    €8.00

  • MZ

    MZ - FG245112114MSL - Nipple 2xbu 1 1/2" x 1 1/4"

    MZ

    €9.43

  • MZ

    MZ - FG2451141MSL - Nipple 2xbu 1 1/4" x 1"

    MZ

    €7.71

  • MZ

    MZ - FG280112MS - MZ Nipple 2xbu 1 1/2", Fittings, Brass Fittings, Threaded Fittings

    MZ

    €10.62

  • MZ

    MZ - FG292114MS - MZ Brass Plug Bu 1 1/4", Fittings, Brass Fittings, Threaded Fittings

    MZ

    €6.86

  • MZ

    MZ - FG2922MS - MZ Brass Plug Bu 2", Fittings, Brass Fittings, Threaded Fittings

    MZ

    €12.75

  • MZ

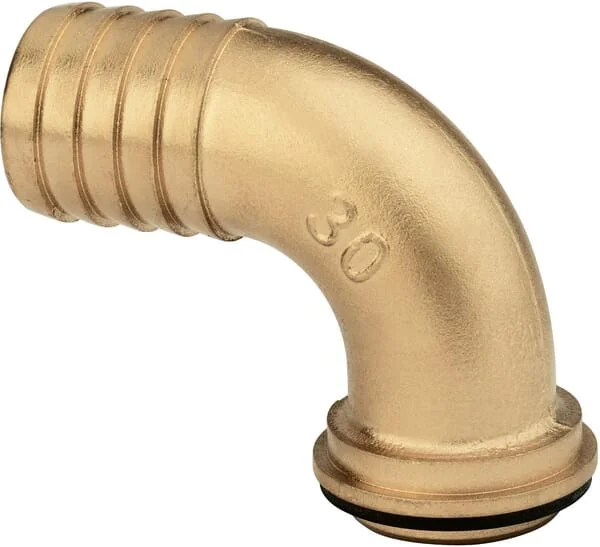

    MZ - FG5125MS - MZ Hose Pillar MS 90°, Fittings, Brass Fittings, Hose Pillars
