MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)
MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)
MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)
MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)

MZ - ARZO0101100561 - Compact Knife Valve 4" (PNEU)

€726.13

(Excl. VAT)

Price

(Excl. VAT)

€726.13

MZ
Mz is a manufacturer of agricultural machinery, specializing in equipment for soil preparation and cultivation. The brand produces plows, harrows, and other tillage implements for efficient field work. Its products are designed for durability and performance in diverse soil conditions. Shop more than 592 genuine Mz spare parts.

Product Details

Brand
MZ
Unit
Each
Benefits
Compact
Properties
Blockage-free cut-off valve Painted cast iron housing with stainless steel gate valve and bolts To install exclusively in the flow direction Without discharge

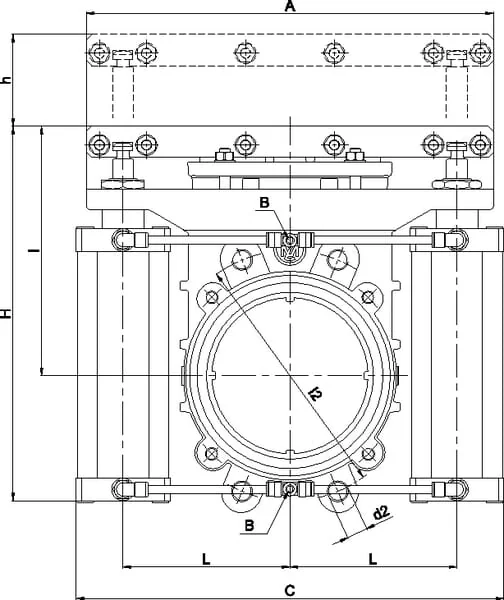

CTotal width
410 mm
HTotal height
338 mm
Technical info
Cylinder connection: 2 x 3/8"
hCylinder stroke
103 mm
AUpper part width
390 mm
Max working pressure
10 BAR
Max medium temperature
80 °C
Min medium temperature
-15 °C
BAir connection diameter
8 mm
Flange mounting holes number
8
DPassage hole nominal diameter
4 Inch
LCentre to cylinder centre distance
160 mm
IPassage hole centre to top distance (closed)
206 mm
d2Flange mounting bolts/holes thread diameter
M16
l2Flange mounting bolts/holes circle diameter
180 mm
Manufacturer
MZ
