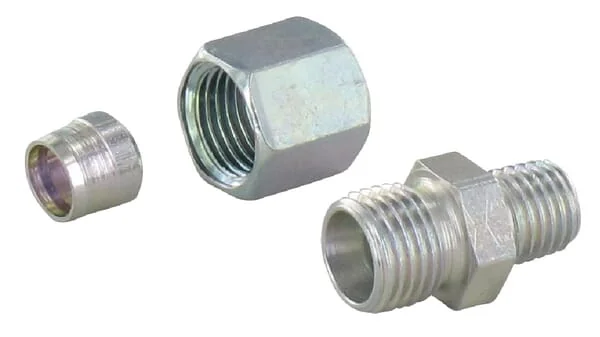

Non Branded - GEV6LLMK8 - Coupling 6ll M8

SKU: non-branded-gev6llmk8

Non Branded - GEV6LLMK8 - Coupling 6ll M8

€3.92

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€3.92

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance
Non Branded

Brand
Non-Branded
Pros
2S cutting ring
Unit
Each
Shape
Straight - 2 connection sides
Series
6LL
Body height
11 mm
DIN standard
2353 2401
Pipe diameter
6 mm
Surface treatment
Zinc Nickel
Connection 2, type
Thread taper
Connection no 1 type
Cutting ring
Max working pressure
100 BAR
Connection no 1 diameter
6 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
1.00 mm
Connection 2, thread diameter
M8
S1Connection no 1 wrench size
12.0 mm
KConnection no 1 thread length
8 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L2Connection 2, centre to end distance
9 mm
L1Connection no 1 center to end distance
20,5 mm
Manufacturer
Non-Branded
