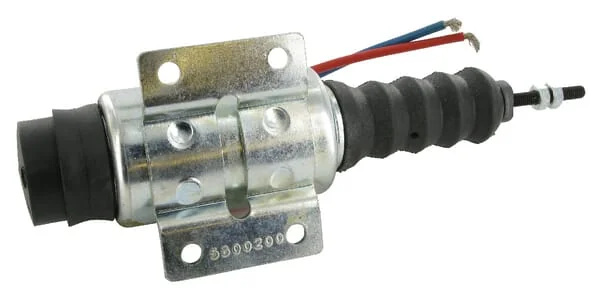

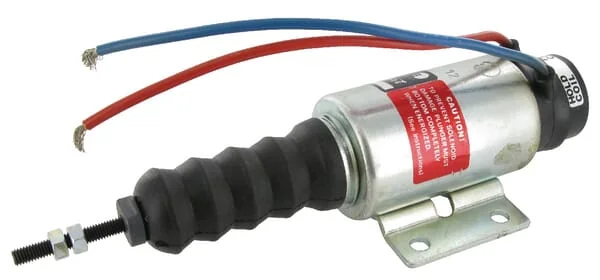

Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43
Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43
Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43
Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43
Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43

Non Branded - MB0512 - Shut-Off Solenoid 12V 40mm 43

€256.40

(Excl. VAT)

Price

(Excl. VAT)

€256.40

Product Description

With thermal fuse to protect the induction coil Stop magnet must be able to perform a complete stroke, otherwise the thermal fuse is actuated
Non Branded

Product Details

Brand
Non-Branded
Note
Max. strokelength = 40mm Pull current = 41 A Hold current = 0,65A Strength at 4 mm stroke = 100 N Strength at 25 mm stroke = 66 N Strength at max. stroke 40 mm = 43 N Weight = 1,18 Kg
Unit
Each
Voltage
12 V
Benefits
Automatic switching from induction to stop coil Insulated design
Properties
Stop magnet for interrupting fuel supply
Consists of
Stop magnet with assembly foot and 180 mm connecting cable
Technical info
Power supply: 12 V Withdrawal current: 41 Ampere Withdrawal current: 0.5 Ampere Maximum stroke length: 40 mm Force at 4 mm: 100 N Force at 25 mm: 66 N Force at 40 mm: 43 N Weight: 1180 g Red cable: +12 V from the input coil Blue cable: +12 V from the stop coil Housing: earth
Application range
Combustion engines
Manufacturer
Non-Branded
