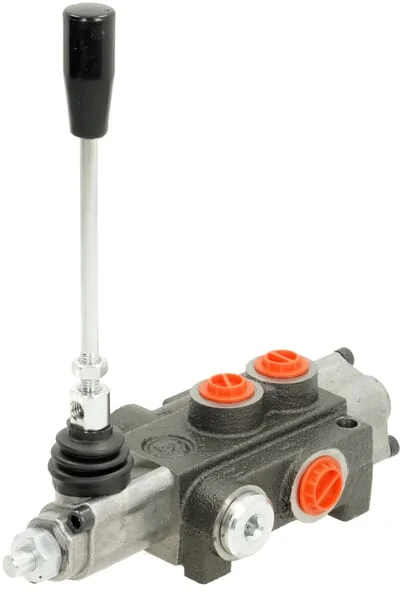

Non Branded - P40U17KZ1TG - Log Splitter Valve 1/2"

SKU: non-branded-p40u17kz1tg

Non Branded - P40U17KZ1TG - Log Splitter Valve 1/2"

€93.78€80.15 (Excl. VAT)

RRP:€106.07
Save €12.28

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€93.78

Brand
Non-Branded
Type
Self closing valve
Unit
Each
Includes
Valve with push button Control lever The end stop/bracket on the cylinder is not a standard item, you will need to make this part yourself
Flow rate
50 l/min
Total height
92 mm
Total length
236,3 mm
Handle length
147 mm
Housing width
79,5 mm
Housing height
87 mm
Housing length
100 mm
Connection type
Thread
Number of ports
5
Housing material
Cast iron
Sealing material
Nitrile rubber [NBR]
Connection 2, type
Thread
Number of positions
3
Max working pressure
315 BAR
Connection thread type
BSP
Max working temperature
60 °C
Min working temperature
-40 °C
Connection thread diameter
1/2 Inch
Connection 2, thread diameter
3/8 Inch
Connection type - male/female
Female
EAN
8719493173536
Manufacturer
Non-Branded

Operation of the four functions : Position 1: The cylinder, which you have equipped with a mechanical stopper, automatically retracts until it taps the push button on the valve, causing it to switch to neutral position 0. Position 2: The cylinder goes out quickly (differential), the oil from the rod side is added to the bottom side. Position 3: The cylinder slides out with the pump flow and maximum power. Position 0: Neutral position (suitable for open centre system)
