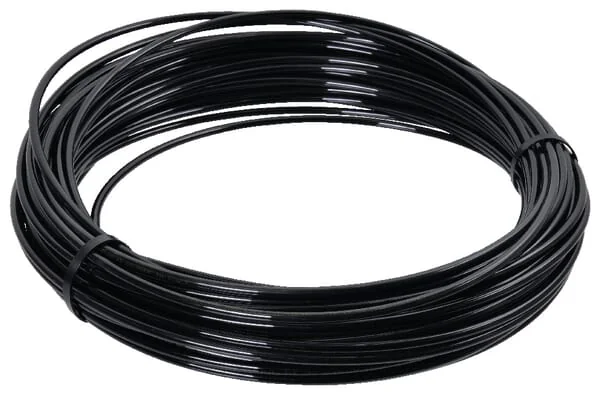

Non Branded - TA84N40 - Servo Control Hose Diameter 8x4

SKU: non-branded-ta84n40

Non Branded - TA84N40 - Servo Control Hose Diameter 8x4

€5.66€4.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€5.66

Part Number
TA84N40
Type
Hydraulic high pressure hose
Unit
Metre
Medium
Hydraulic oil
Weight
0,039 kg/m
Bend radius
32 mm
DIN standard
73378
Qty. Rounding
0.01
Burst pressure
132 BAR
Technical info
Put a locking or clamping ring before mounting on the fittings Supporting clamp for lock coupling: item: 2212 001 Oil and petrol resistant, no acid resistance.
Material inside
Polyamide
Material outside
Polyamide
Application range
Servo control on valves Grease lubrication with a maximum working pressure of 33 bar.
Hose inside diameter
4 mm
Max working pressure
33 BAR
Hose outside diameter
8 mm
Max working temperature
80 °C
Min working temperature
-20 °C
