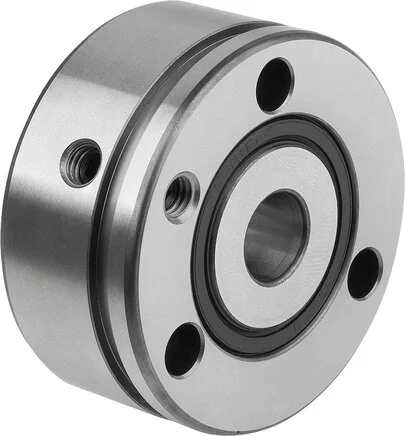

Norelem - 23806-01-101205525 - Axial Angular Contact Ball Bearing

SKU: norelem-23806-01-101205525

Norelem - 23806-01-101205525 - Axial Angular Contact Ball Bearing

€380.13€324.90 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€380.13

Brand
Norelem
Form
A
Version
Seitenflächen geschliffen.
Material
Gehäuse Stahl.
Version 1
doppelreihig
Designation
Axial-Schrägkugellager
Runout (µm)
2
Short Designation
1255-2RS
Temperature Range
-30 °C to +120 °C.
Base Body Material
Stahl
Bore Deviation (µm)
0-5
Limiting Speed (rpm)
3.800
Width Deviation (µm)
0-250
Axial Stiffness (N/µm)
375
Static Load Ratings (N)
24.700
Dynamic Load Ratings (N)
16.900
Radial Internal Clearance
vorgespannt
Tilting Stiffness (Nm/mrad)
50
Bearing Friction Torque (Nm)
0,16
Outside Diameter Deviation (µm)
0-10
Mass Moment Of Inertia (kg·cm²)
0,068
Tightening Torque Precision Slotted Nut (Nm)
8
EAN
4059495483979
Manufacturer
Norelem
